Clamp-On Ultrasonic Heat Meter

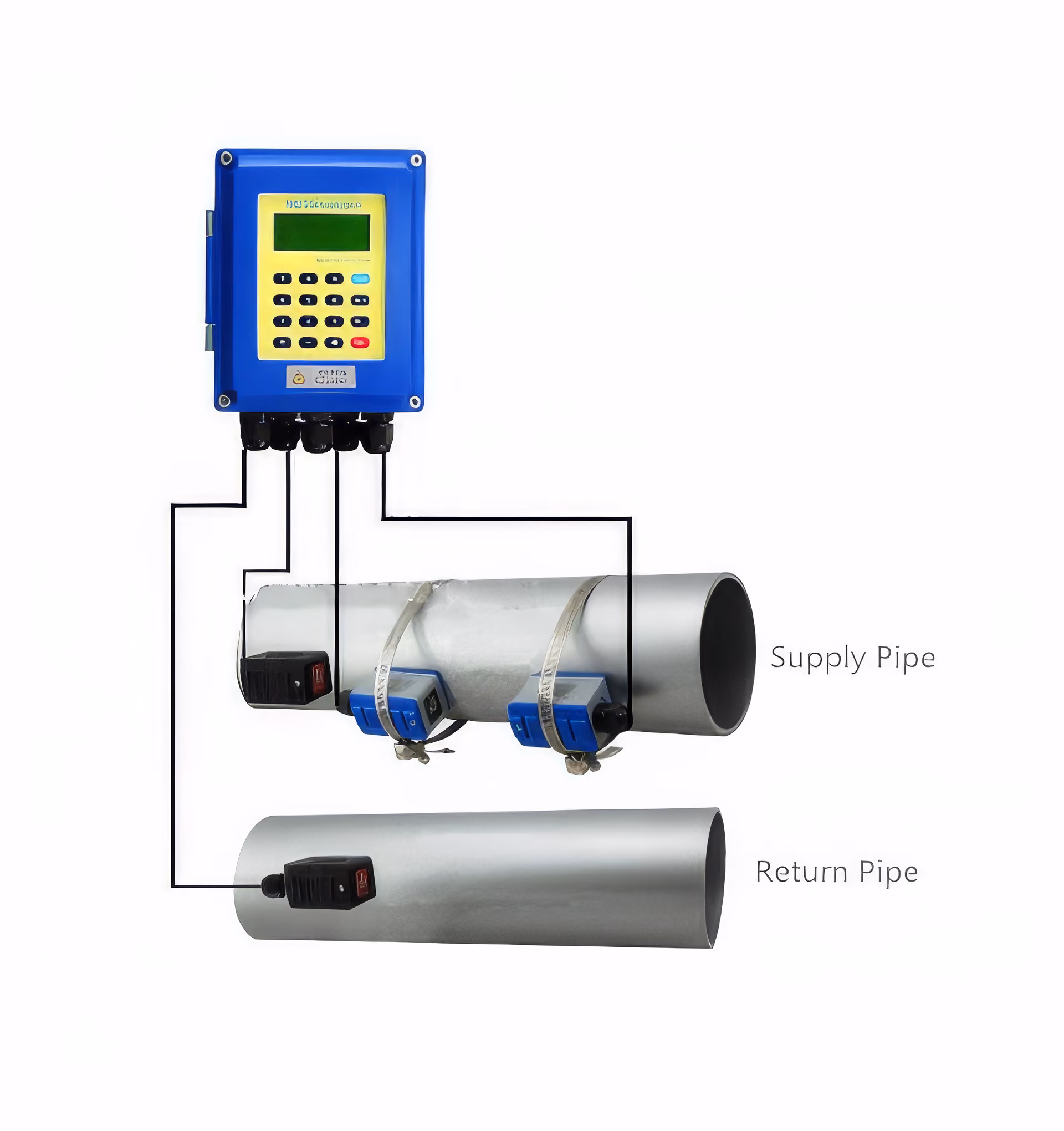

RBFM Fixed Clamp-on ultrasonic heat meters(BTU meter) employ the proven transit-time ultrasonic flow measurement technique combined with two PT 100 temperature sensors (or customer-supplied RTD sensors) for calculating total and instantaneous energy consumption. Flow measurement may be achieved via clamp-on, spool piece, or insertion-type sensors. Our microprocessor based, user friendly field programmable flow measurement technique creates no interruption of the process flow and allows for easy installation.
RBFM Fixed Clamp-on ultrasonic heat meter is available with a variety of features that make it adaptable to many different applications. Available transducer types include clamp-on, in-line, and insertion. Wall-mount, panel-mount, pipe-mounted and compact din-rail mounted display types are also offered. Additional available features include pulse, 0-20mA & 4-20mA outputs, RS-232 communication, user-selectable engineering units, and a data logger function. This variety of features, combined with its low cost, make the RB series an ideal choice for economical BTU monitoring in many applicationsinvolving chillers, radiators, and heat exchangers.
%2520Meter.png)
%2520Meter.png)
Clamp-On Ultrasonic Heat Meter
RBFM 固定式夹装超声波热量表（BTU 表）采用成熟的时差式超声波流量测量技术，结合两个 PT100 温度传感器（或客户提供的 RTD 传感器），用于计算总能耗和瞬时能耗。
流量测量可通过夹装式、直通式或插入式传感器实现。我们的微处理器控制、用户友好的现场可编程流量测量系统可实现不中断流体过程的安装方式，安装简单方便。
RBFM 固定式夹装超声波热量表具有多种功能，可适应多种应用场景。可选的传感器类型包括夹装式、在线式和插入式。还可提供壁挂式、面板安装式、管道安装式和紧凑型导轨安装显示单元。其他可选功能包括脉冲输出、0-20mA 和 4-20mA 模拟输出、RS-232 通讯、用户可选的工程单位和数据记录功能。
其多样的功能和低成本优势，使 RB 系列成为冷却器、散热器和热交换器等多种场景下经济型 BTU 能耗监测的理想选择。
Clamp-On Ultrasonic Heat Meter
เครื่องวัดพลังงานความร้อนแบบอัลตราโซนิก RBFM Fixed Clamp-on (BTU meter) ใช้เทคโนโลยีการวัดการไหลแบบเวลาผ่าน (transit-time) ที่ได้รับการพิสูจน์แล้ว พร้อมเซนเซอร์อุณหภูมิ PT100 สองตัว (หรือเซนเซอร์ RTD ที่ลูกค้าจัดหา) เพื่อคำนวณการใช้พลังงานทั้งหมดและแบบทันที
การวัดการไหลสามารถทำได้ด้วยหัววัดแบบหนีบ (clamp-on), แบบแทรก (insertion), หรือแบบท่อ (spool piece)เทคโนโลยีการวัดการไหลที่ตั้งโปรแกรมได้ในภาคสนาม โดยใช้ไมโครโปรเซสเซอร์ ใช้งานง่าย ติดตั้งโดยไม่กระทบกับการไหลของระบบ
RBFM มาพร้อมคุณสมบัติหลากหลายที่สามารถปรับให้เหมาะสมกับการใช้งานที่หลากหลาย มีหัววัดให้เลือกทั้งแบบ clamp-on, แบบติดตั้งในท่อ (in-line) และแบบ insertion
ประเภทจอแสดงผลมีทั้งติดผนัง ติดแผง ติดท่อ และติดรางแบบ DIN ขนาดกะทัดรัดคุณสมบัติเพิ่มเติม ได้แก่ เอาต์พุตพัลส์, 0-20mA & 4-20mA, การสื่อสารผ่าน RS-232, หน่วยวิศวกรรมที่เลือกได้ และฟังก์ชันบันทึกข้อมูล
คุณสมบัติเหล่านี้ร่วมกับต้นทุนที่ต่ำ ทำให้ RB series เป็นตัวเลือกที่เหมาะสมสำหรับการตรวจวัด BTU อย่างประหยัดในงานที่เกี่ยวกับชิลเลอร์ หม้อน้ำ และเครื่องแลกเปลี่ยนความร้อน
Clamp-On Ultrasonic Heat Meter
RBFM Fixed Clamp-on ultrasonic heat meters(BTU meter) employ the proven transit-time ultrasonic flow measurement technique combined with two PT 100 temperature sensors (or customer-supplied RTD sensors) for calculating total and instantaneous energy consumption. Flow measurement may be achieved via clamp-on, spool piece, or insertion-type sensors. Our microprocessor based, user friendly field programmable flow measurement technique creates no interruption of the process flow and allows for easy installation.
RBFM Fixed Clamp-on ultrasonic heat meter is available with a variety of features that make it adaptable to many different applications. Available transducer types include clamp-on, in-line, and insertion. Wall-mount, panel-mount, pipe-mounted and compact din-rail mounted display types are also offered. Additional available features include pulse, 0-20mA & 4-20mA outputs, RS-235 communication, user-selectable engineering units, and a data logger function. This variety of features, combined with its low cost, make the RB series an ideal choice for economical BTU monitoring in many applicationsinvolving chillers, radiators, and heat exchangers.
Clamp-On Ultrasonic Heat Meter
Đồng hồ đo nhiệt siêu âm kiểu kẹp cố định RBFM (BTU meter) sử dụng kỹ thuật đo lưu lượng siêu âm theo thời gian truyền đã được chứng minh, kết hợp với hai cảm biến nhiệt độ PT100 (hoặc cảm biến RTD do khách hàng cung cấp) để tính toán lượng tiêu thụ năng lượng tổng và tức thời
Việc đo lưu lượng có thể thực hiện qua các đầu dò kiểu kẹp, dạng ống nối hoặc dạng chènHệ thống đo lưu lượng sử dụng bộ vi xử lý, dễ lập trình tại chỗ, không làm gián đoạn dòng chảy và lắp đặt rất thuận tiện
RBFM có nhiều tùy chọn phù hợp với nhiều ứng dụng khác nhau, bao gồm đầu dò clamp-on, in-line, và dạng chèn
Loại hiển thị gồm gắn tường, gắn bảng, gắn ống và gắn ray DIN nhỏ gọnCác tính năng bổ sung gồm có đầu ra xung, 0-20mA & 4-20mA, giao tiếp RS-232, đơn vị kỹ thuật tùy chọn và chức năng ghi dữ liệu
Với các tính năng đa dạng cùng chi phí thấp, dòng RB là lựa chọn lý tưởng cho giám sát BTU tiết kiệm trong các ứng dụng như chiller, bộ tản nhiệt và bộ trao đổi nhiệt
