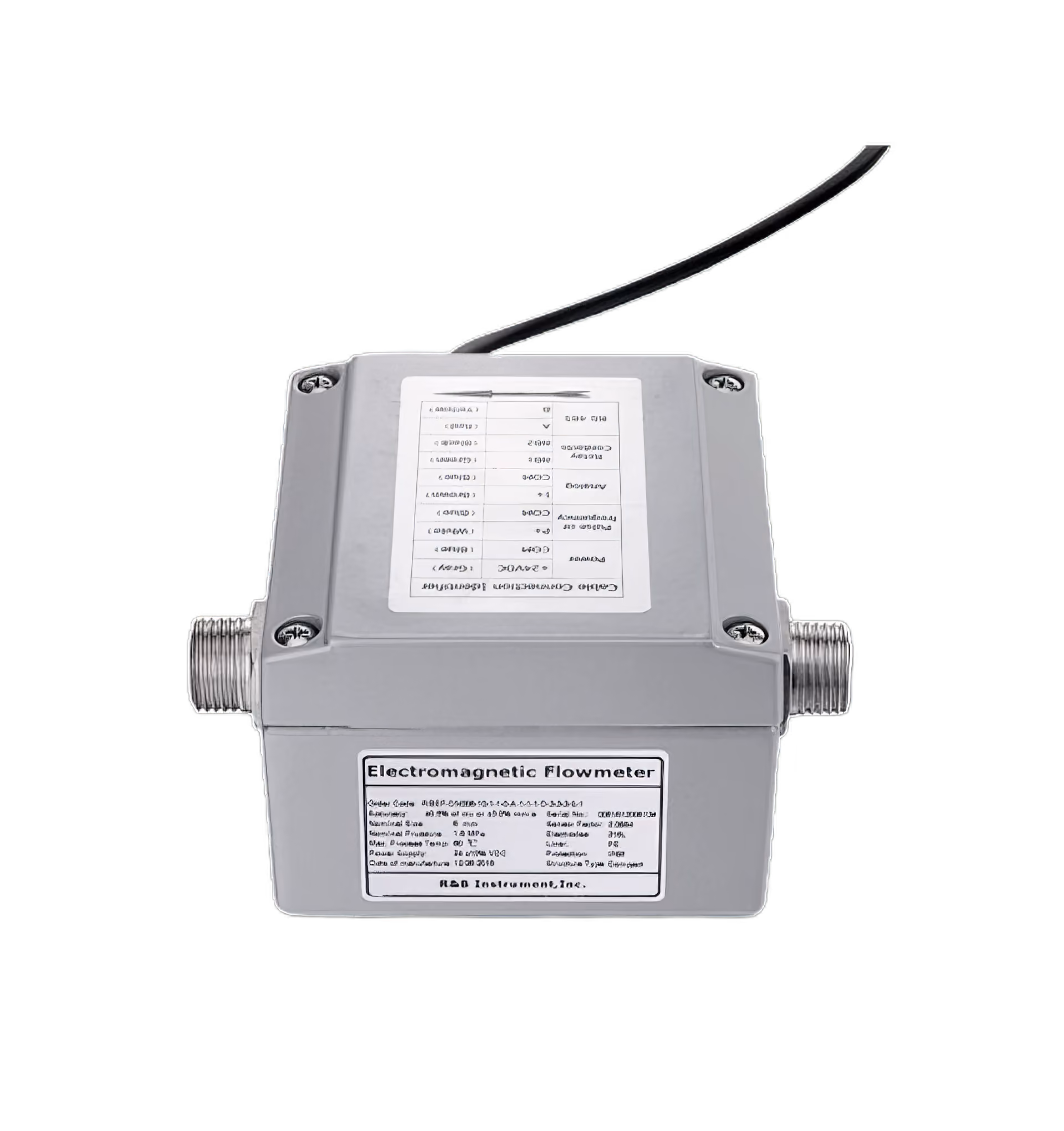

Mini Inductive Magnetic Flow Meter

The RBEF-E Mini Inductive Magnetic flow meter(Mini flow) extremely compact, low cost, inductive magnetic flow meter(including Transmitter and sensor), the Mini Inductive Magnetic flow meter is Full Bore for Low-Flow Measurement and the perfect solution for measuring the flow of conductive liquids in applications where reliability and low-pressure loss of a magmeter are desired at an economical price compared to higher end models. This magmeter measures flow using the magnetic-inductive principle. According to Faraday’s law of magnetic induction, current is induced into a conductor as it moves through a magnetic field. The amount of current induced is directly proportional to the velocity of the moving conductor.  A conductive liquid passing through the flowmeter body acts as the conductor. The flowmeter body contains a set of electromagnetic coils that generate the magnetic field. Electrodes mounted in the flowmeter body collect the current, whose magnitude is proportional to flow rate.

RBEF-E Mini Inductive Magnetic flow meter is special designed liquid flow monitoring in industrial processes such as for food and beverages, Chemical and Pharmaceutical filling controller, plumbing applications.

The Magmeters is ideal for use in the field of mechanical engineering and plant construction,  No Moving Parts, RS485, Frequency and 4 to 20 mA Output, Maintenance-Free, Minimum inlet section requirements and the instrument is available in three different sizes. All Inductive Magnetic flow meters will be delivered with a works calibration certificate.

Mini Inductive Magnetic Flow Meter

Mini Inductive Magnetic Flow Meter

RBEF-E 迷你电感式电磁流量计(Mini flow)是一款结构极其紧凑、成本低廉的电感式电磁流量计(包括变送器与传感器)。

该迷你流量计采用全通径设计,适用于小流量测量,是在需要电磁流量计的可靠性与低压损性能、但预算有限的应用场景中的理想选择。该流量计基于电磁感应原理进行测量。

根据法拉第电磁感应定律,当导体通过磁场时会感应出电流,感应电流的大小与导体的速度成正比。在该设备中,流经流量计主体的导电液体充当导体。

流量计主体内设有一组电磁线圈用以产生磁场,电极安装在流量计内部以收集与流速成正比的感应电流。

RBEF-E 特别适用于食品饮料、化工、制药灌装控制、以及管道监测等工业过程的液体流量监测。

该电磁流量计适用于机械工程与设备制造领域,具有无移动部件、RS485、频率和 4-20mA 输出、免维护、对前段直管段要求极低等特点,并提供三种规格尺寸。

所有电感式电磁流量计均随附出厂校准证书。

Mini Inductive Magnetic Flow Meter

Mini Inductive Magnetic Flow Meter

RBEF-E เครื่องวัดอัตราการไหลแบบแม่เหล็กไฟฟ้าชนิดเหนี่ยวนำขนาดเล็ก (Mini flow) เป็นมิเตอร์ที่มีขนาดกะทัดรัดมาก ราคาประหยัด รวมทั้งตัวแปลงสัญญาณและเซนเซอร์

มิเตอร์ชนิด Full Bore นี้ออกแบบมาสำหรับการวัดอัตราการไหลต่ำ เหมาะสำหรับการวัดของเหลวที่นำไฟฟ้า โดยเน้นความเชื่อถือได้ แรงดันตกต่ำ และราคาที่คุ้มค่ากว่ารุ่นระดับสูง

หลักการทำงานของมิเตอร์นี้ใช้หลักแม่เหล็กไฟฟ้าเหนี่ยวนำ ตามกฎของฟาราเดย์ เมื่อของเหลวนำไฟฟ้าไหลผ่านสนามแม่เหล็ก จะเกิดกระแสไฟฟ้าซึ่งมีขนาดแปรผันตามความเร็วของของเหลว

ขดลวดแม่เหล็กที่อยู่ภายในตัวมิเตอร์สร้างสนามแม่เหล็ก ขั้วไฟฟ้าที่ติดตั้งภายในจะเก็บกระแสที่เกิดขึ้น ซึ่งใช้ในการคำนวณอัตราการไหล

เหมาะสำหรับงานควบคุมกระบวนการในอุตสาหกรรมอาหารและเครื่องดื่ม เคมีภัณฑ์ ยา ระบบท่อ ฯลฯเหมาะอย่างยิ่งสำหรับวิศวกรรมเครื่องกลและการก่อสร้างเครื่องจักร ไม่มีชิ้นส่วนเคลื่อนไหว มีเอาต์พุต RS485, สัญญาณ

ความถี่ และ 4-20 mA ไม่ต้องบำรุงรักษา ต้องการระยะท่อสั้น และมีให้เลือก 3 ขนาดเครื่องวัดอัตราการไหลแม่เหล็กไฟฟ้าทุกเครื่องจะจัดส่งพร้อมใบรับรองการสอบเทียบจากโรงงาน

Mini Inductive Magnetic Flow Meter

Mini Inductive Magnetic Flow Meter

RBEF-E Mini Flow ialah meter aliran magnetik induktif bersaiz kecil, kos rendah yang padat, merangkumi pemancar dan sensor

Meter ini direka khas untuk pengukuran aliran rendah secara full bore dan sesuai untuk aplikasi cecair konduktif yang memerlukan kebolehpercayaan dan kehilangan tekanan rendah pada harga ekonomi

Menggunakan prinsip induksi magnetik berdasarkan hukum Faraday — apabila cecair konduktif bergerak melalui medan magnet, arus akan diinduksi berkadar terus dengan kelajuan cecair tersebut

Cecair itu sendiri berfungsi sebagai konduktor; gegelung elektromagnet di dalam badan meter menjana medan magnet, manakala elektrod mengumpulkan arus yang berkadar terus dengan kadar aliran

Sesuai untuk pemantauan aliran dalam industri makanan dan minuman, kimia, farmaseutikal dan aplikasi paip

Magmeter ini sangat sesuai untuk bidang kejuruteraan mekanikal dan pembinaan loji — tanpa bahagian bergerak, dengan RS485, output frekuensi, 4–20 mA, bebas penyelenggaraan, dan keperluan paip masuk minimum

Tersedia dalam tiga saiz dan disertakan sijil penentukuran kilang

Mini Inductive Magnetic Flow Meter

Mini Inductive Magnetic Flow Meter

RBEF-E Mini Flow là đồng hồ đo lưu lượng điện từ cảm ứng siêu nhỏ gọn, giá thành thấp, bao gồm cả bộ phát và cảm biến

Thiết kế full bore cho phép đo lưu lượng thấp một cách chính xác, lý tưởng cho ứng dụng đo chất lỏng dẫn điện với yêu cầu độ tin cậy cao và tổn thất áp suất thấp ở mức chi phí hợp lý

Thiết bị hoạt động theo nguyên lý cảm ứng điện từ của Faraday — dòng điện được tạo ra khi chất lỏng dẫn điện di chuyển qua từ trường, tỷ lệ thuận với vận tốc dòng chảy

Chất lỏng đóng vai trò là vật dẫn; cuộn dây từ trong thân đồng hồ tạo ra từ trường, các điện cực sẽ thu thập dòng điện cảm ứng để tính toán lưu lượng

Phù hợp cho quy trình công nghiệp như thực phẩm & đồ uống, hóa chất, dược phẩm, kiểm soát đóng chai, và ứng dụng trong hệ thống ống nước

Thiết bị lý tưởng cho ngành kỹ thuật cơ khí và xây dựng hệ thống — không có bộ phận chuyển động, đầu ra RS485, tín hiệu tần số và 4–20 mA, không cần bảo trì, yêu cầu đoạn ống đầu vào tối thiểu

Có ba kích thước tùy chọn và được giao kèm với chứng nhận hiệu chuẩn của nhà máy
