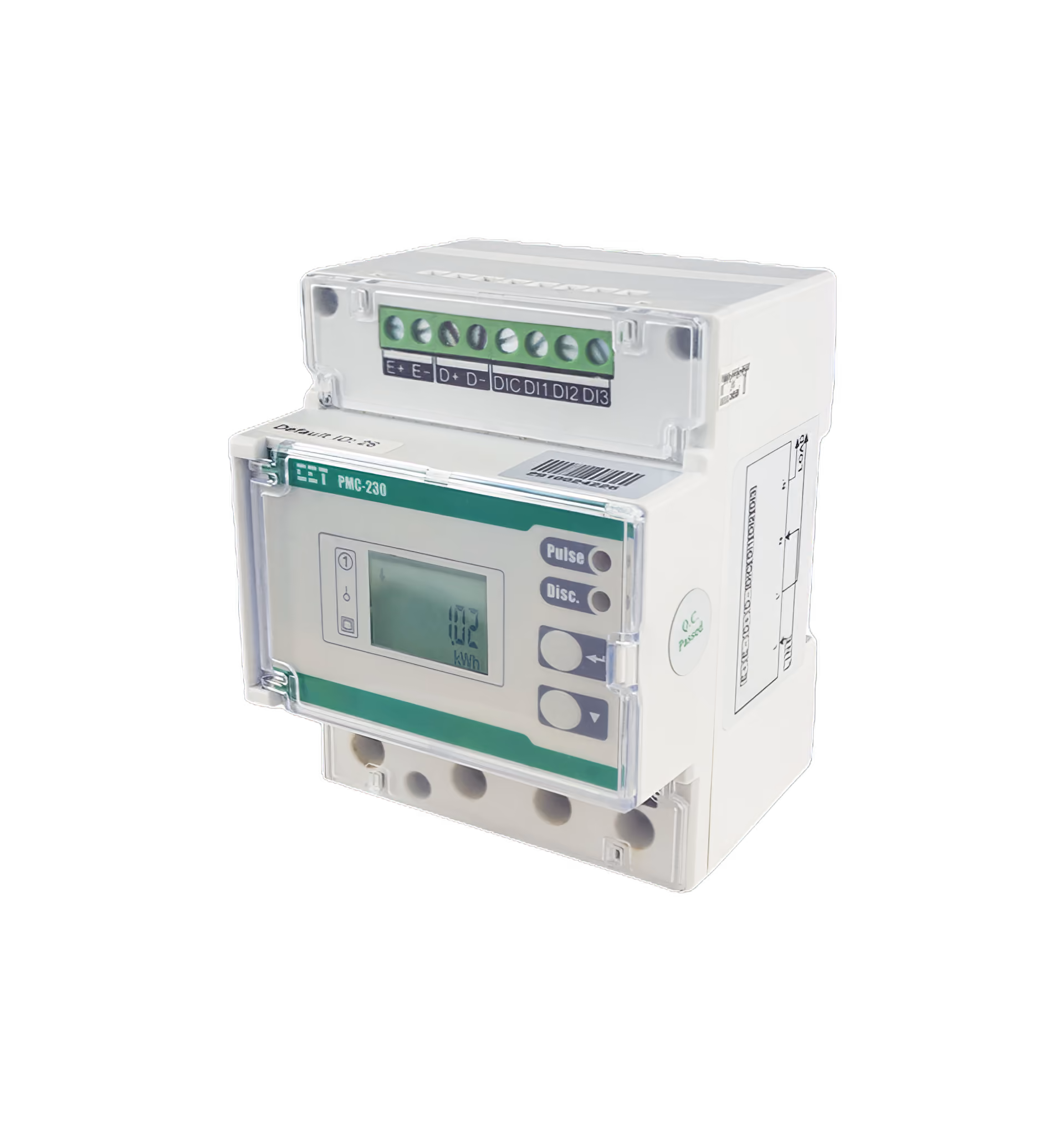

The PMC-230 Single-Phase Multifunction Meter is designed for the low-voltage energy metering market, featuring DIN-rail mounting, a compact design, and 63A direct input.

It includes a built-in disconnect relay compliant with the Australian National Electricity Rules (NER) Schedule 7.5, allowing remote disconnection and reconnection from the power supply.

The PMC-230 complies with the IEC 62053-21 Class 1 kWh accuracy standard and is approved by the National Measurement Institute (NMI) of Australia according to M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements.

It provides 4MB of log memory for data recording, 3 digital inputs (DI) for status monitoring or pulse counting, 1 LED indicator, and 1 solid-state pulse output (SS) for energy pulsing.Equipped with an RS-485 port supporting Modbus RTU protocol and password protection, the PMC-230 serves as a secure and intelligent component for multifunctional energy management systems.

Ease of use

• Easy to read LCD for both data viewing and configuration
• Two LED indicators for Energy Pulsing and Disconnect Relay status
• Password protected setup via Front Panel or free PMC Setup software
• Easy installation with DIN rail mounting, no tools required

Basic Measurements

• IEC 62053-21 Class 1 and NMI M6-1 Certified by UL
• Direct Input up to 63A without external CT
• U, I, P Q, S, PF, Frequency and Operating Time
• kWh and kvarh Imp./Exp. and kVAh
• Two TOU schedules, each providing
• 4 Seasons
• 12 Daily Profiles, each with 8 Periods in 15-minute interval
• 30 Holidays or Alternate Days
• 4 Tariffs, each providing kWh/kvarh Imp./Exp., kVAh
• Demands and Max. Demands for U, I and P/Q/S with timestamp for This Month & Last Month (or Since Last Reset & Before Last Reset)
• U and I THD
• DI Counters, Front Panel & Communication Programming Counters
• Disconnect Relay (Internal)
• UC3 compliant Disconnect Relay that can be activated locally from the
• Front Panel or remotely via communications

Energy Pulse Outputs

• 1 LED Energy Pulse Output on the Front Panel
• 1 Solid State Relay Energy Pulse Output

Digital Inputs

• 3 channels for external status monitoring and pulse counting
• Self-excited, internally wetted at 12VDC
• 1000Hz sampling
