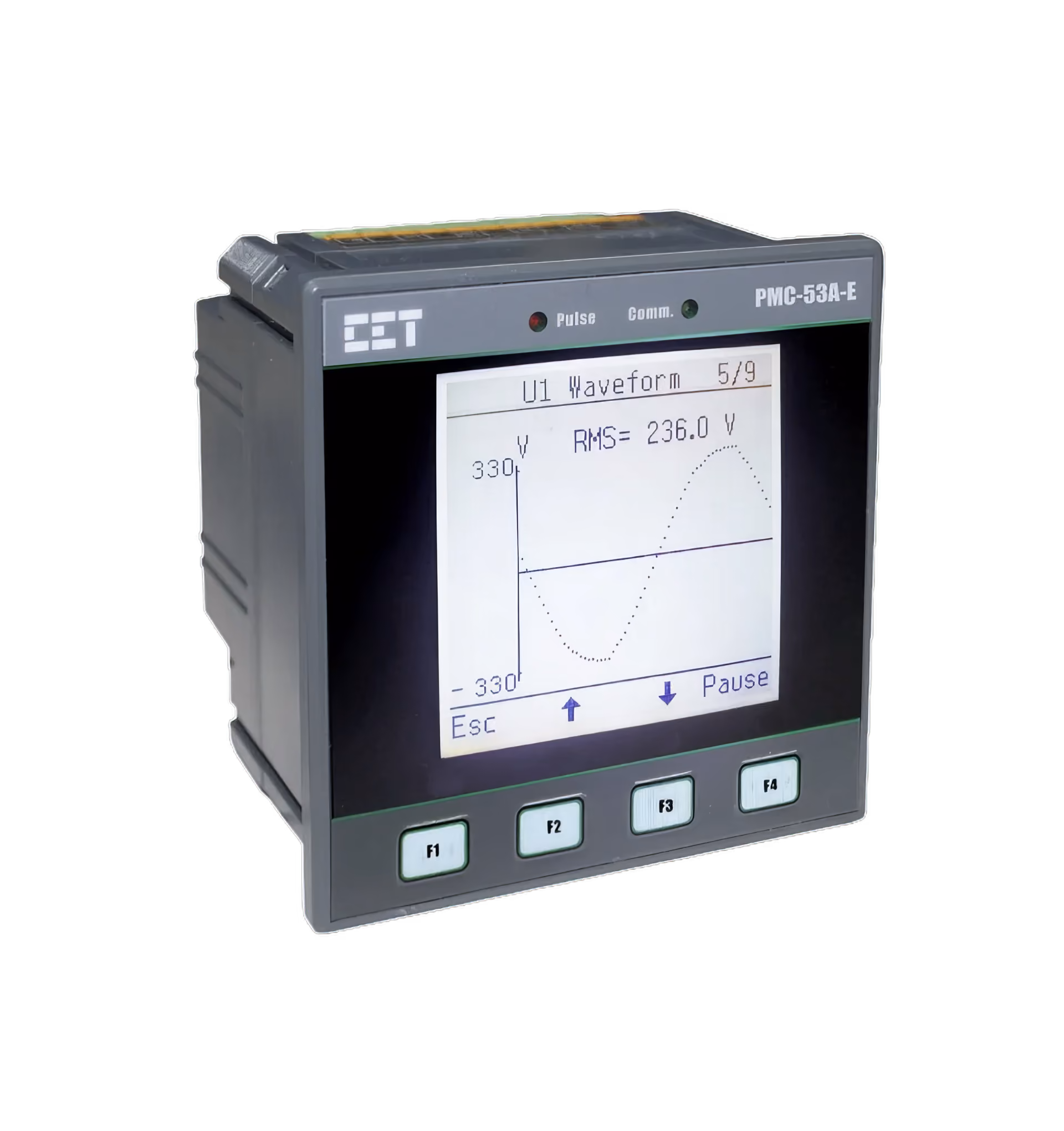

PMC 53A-E

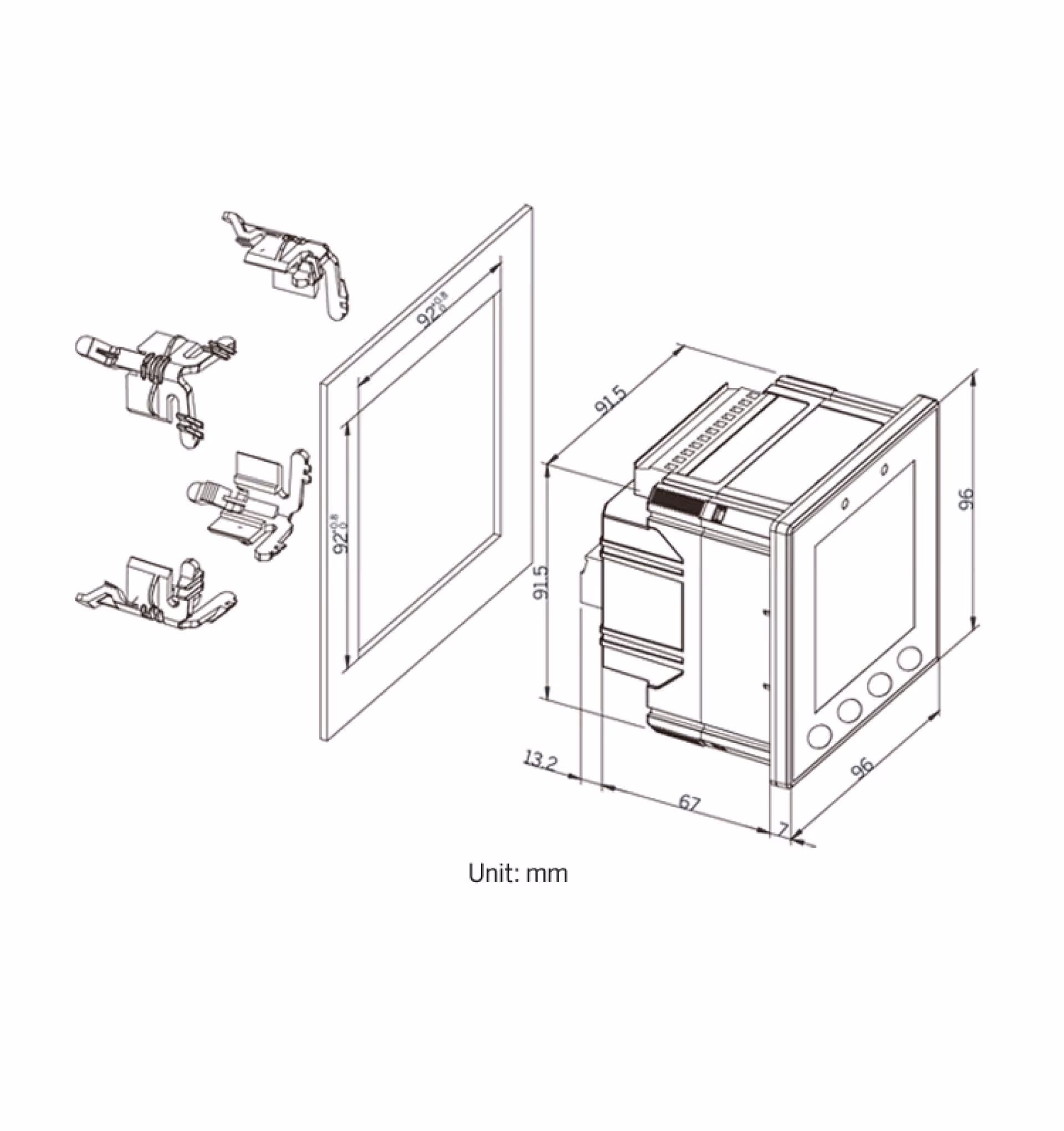

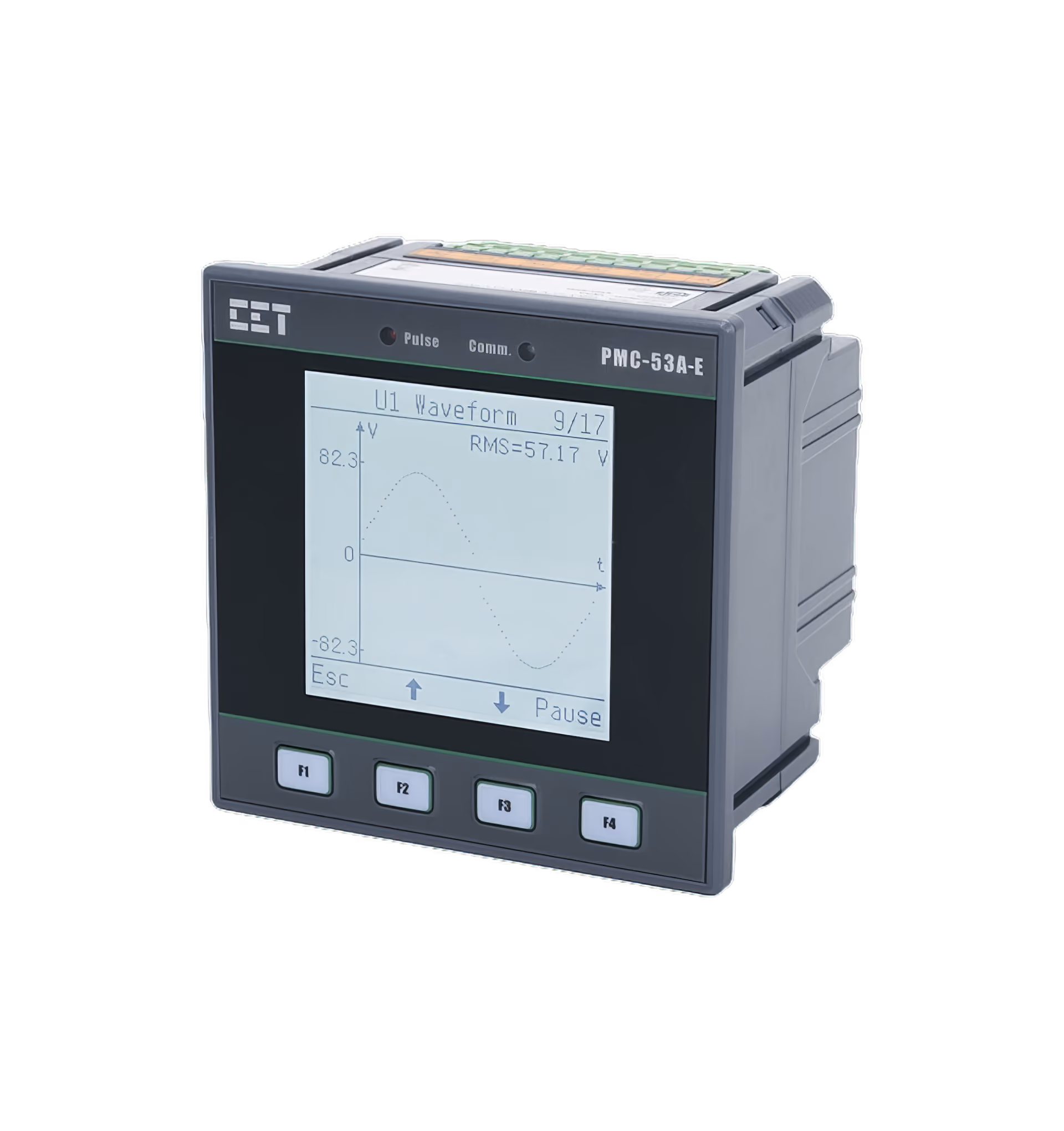

The PMC-53A-E is a DIN96 (96x96x88mm) Ethernet multifunction meter designed for precise monitoring of three-phase power and energy parameters. Compliant with IEC 62053-22 Class 0.5S and ANSI C12.20 Class 0.2 standards, it serves as a reliable replacement for analog instrumentation in various applications.​

Key Features:

  • High Accuracy: Complies with IEC 62053-22 Class 0.5S and ANSI C12.20 Class 0.2 standards.
  • Comprehensive Measurements: Provides real-time monitoring of voltage, current, power, energy, frequency, power factor, and harmonics up to the 31st order.
  • Advanced Analysis: Features include Total Harmonic Distortion (THD), Total Demand Distortion (TDD), K-Factor, Crest Factor, unbalance, phase angle, and displacement power factor.

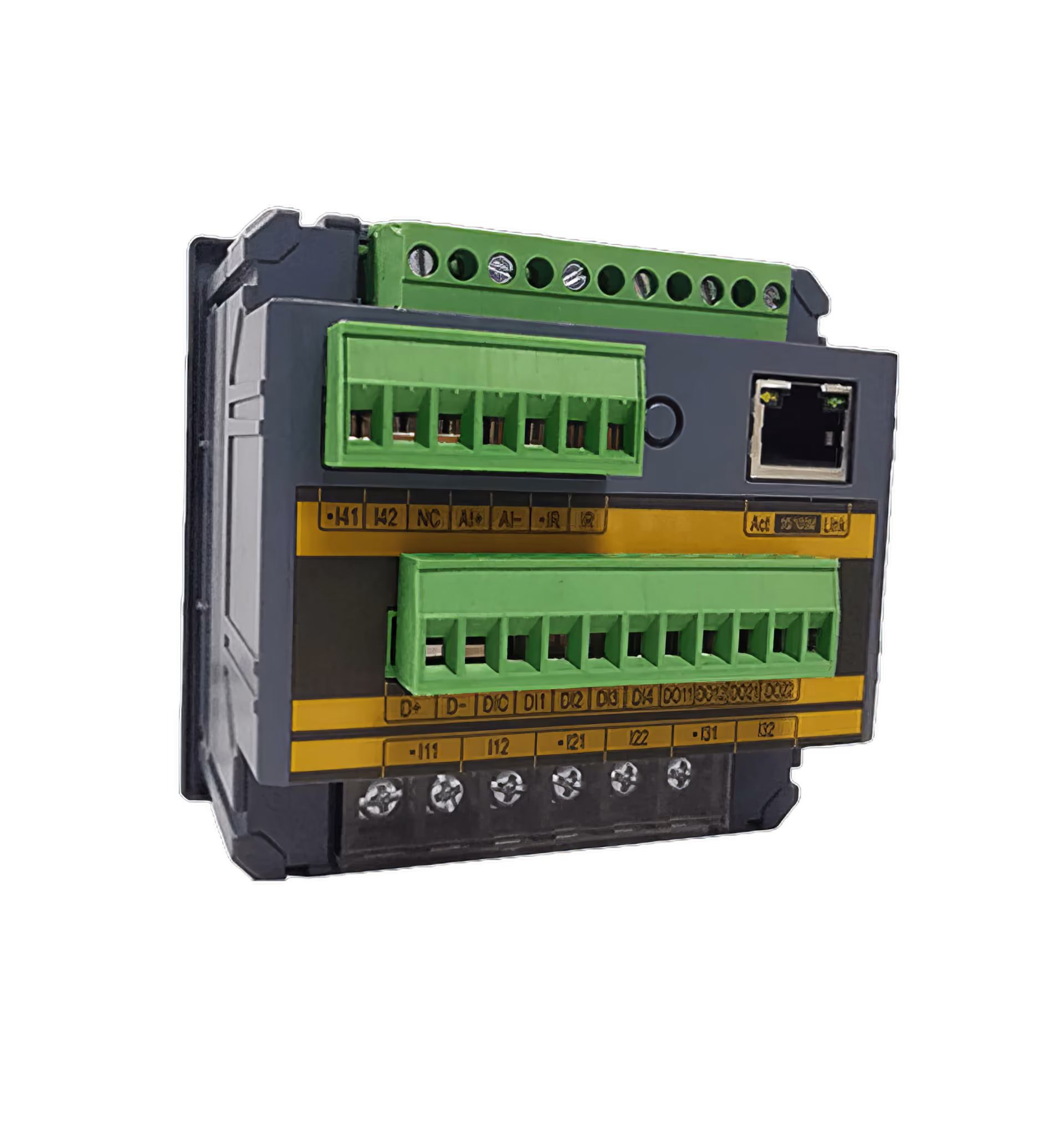

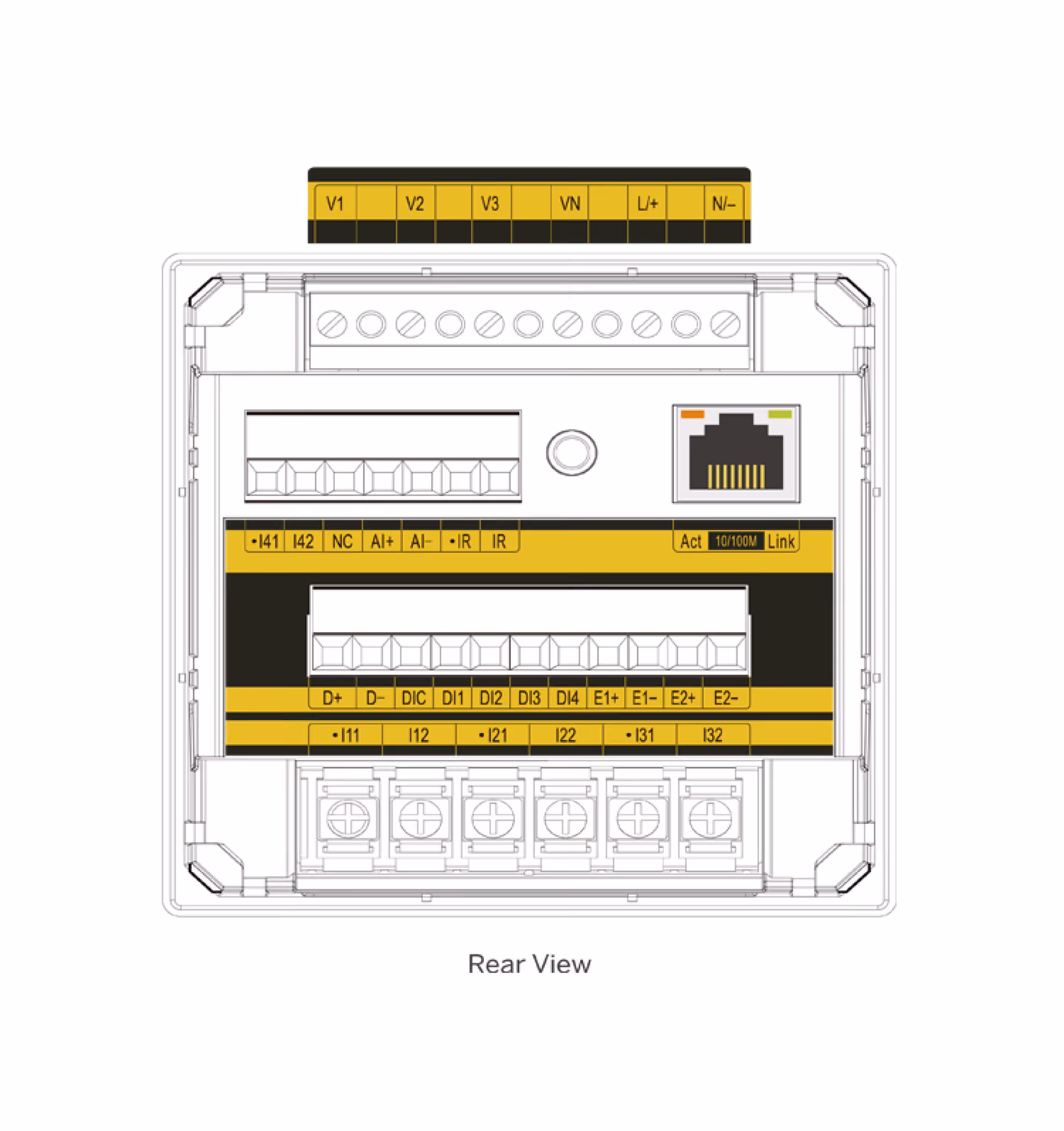

  • Flexible I/O Options: Supports optional I4 input for neutral current measurement, 0/4–20mA analog input for external transducers, and Ir input for residual current measurement.
  • Communication: Equipped with a standard 100BaseT Ethernet port and an RS-485 port supporting multiple protocols, including Modbus RTU/TCP, BACnet MS/TP, DNP 3.0, HTTP, SMTP, SNTP, and TFTP.
  • Web-Based Access: Built-in password-protected web server for real-time data viewing and setup configuration via browser.
  • Data Logging: Offers energy logs, maximum/minimum logs, event logs with timestamping, and data recorders for comprehensive data analysis.

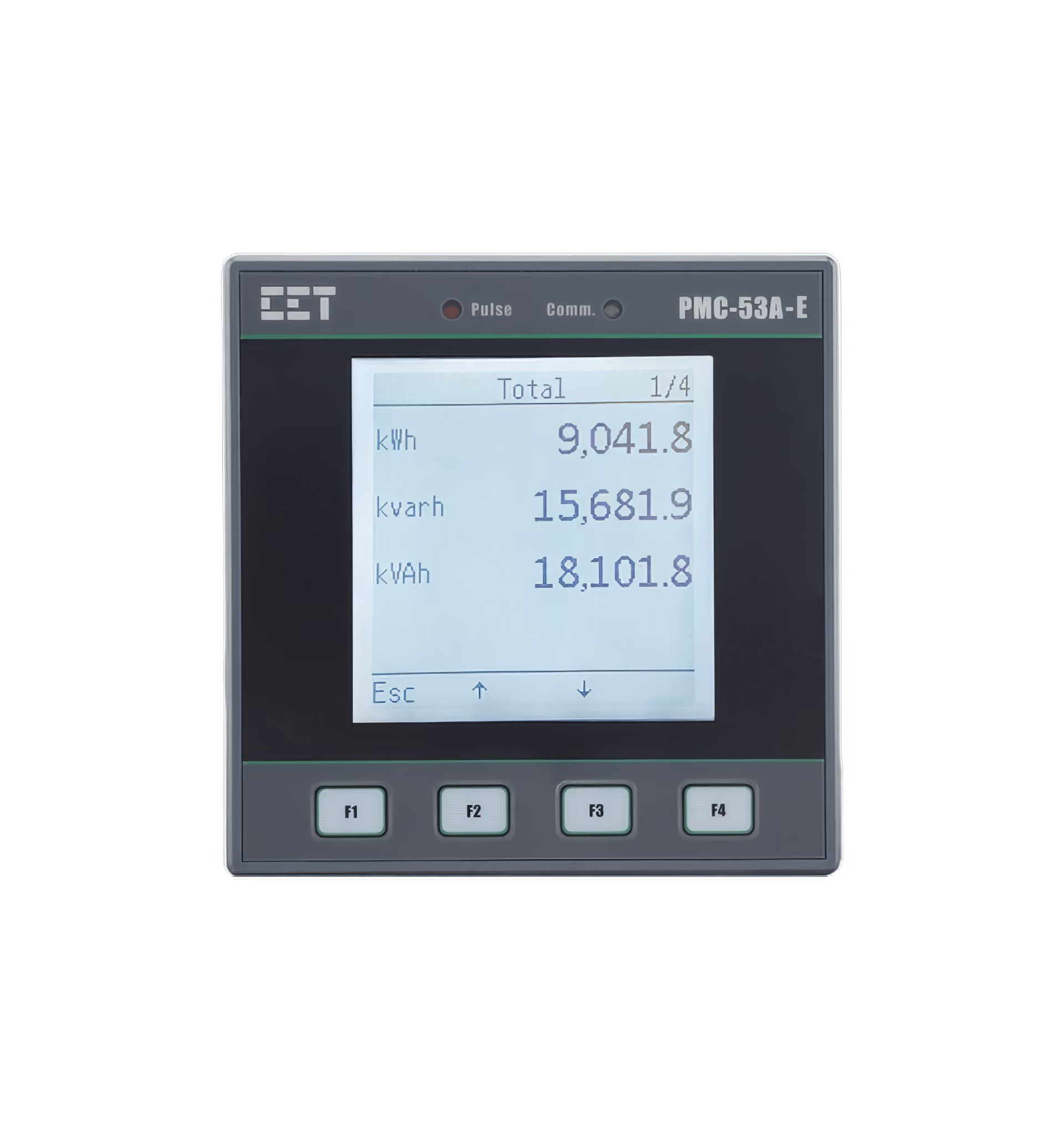

  • Ease of Use: Intuitive user interface with LED indicators for energy pulsing and communication activities.

Typical Applications:

  • Industrial, commercial, and utility substation metering.
  • Building, factory, and process automation.
  • Sub-metering and cost allocation.
  • Energy management and power quality monitoring.

PMC 53A-E

PMC 53A-E

PMC-53A-E 是一款 DIN96(96x96x88mm)以太网多功能电表,专为三相电力与能耗参数的精确监测而设计。符合 IEC 62053-22 0.5S 级和 ANSI C12.20 0.2 级标准,是多种应用中模拟仪表的可靠替代方案。

主要特点:

  • 高精度: 符合 IEC 62053-22 Class 0.5S 和 ANSI C12.20 Class 0.2 标准
  • 全面测量: 实时监测电压、电流、功率、能量、频率、功率因数与最高至 31 次谐波
  • 高级分析功能: 包含总谐波失真(THD)、总需量失真(TDD)、K 因子、波峰因子、不平衡、相角、位移功率因数
  • 灵活 I/O: 支持 I4 中性电流输入、0/4–20mA 模拟量输入(用于外部传感器)和 Ir 漏电流输入
  • 通信功能: 配备 100BaseT 以太网接口和 RS-485 接口,支持 Modbus RTU/TCP、BACnet MS/TP、DNP 3.0、HTTP、SMTP、SNTP、TFTP 等协议
  • 网页访问: 内置密码保护网页服务器,可通过浏览器实时查看数据并进行配置
  • 数据记录: 支持能耗日志、最大/最小值记录、带时间戳的事件日志和数据记录器,便于数据分析
  • 使用便捷: 直观用户界面,配有能耗脉冲与通信指示灯

典型应用:

  • 工业、商业及公用事业变电站计量
  • 建筑、工厂与过程自动化
  • 分项计量与成本分摊
  • 能源管理与电能质量监测

PMC 53A-E

PMC-53A-E เป็นมิเตอร์มัลติฟังก์ชันแบบ Ethernet ขนาด DIN96 (96x96x88mm) สำหรับตรวจสอบค่าพลังงานและไฟฟ้า 3 เฟสอย่างแม่นยำ รองรับมาตรฐาน IEC 62053-22 Class 0.5S และ ANSI C12.20 Class 0.2 เหมาะสำหรับใช้งานแทนเครื่องมือแอนะล็อกในหลายแอปพลิเคชัน

คุณสมบัติเด่น:

  • ความแม่นยำสูง: รองรับมาตรฐาน IEC 62053-22 Class 0.5S และ ANSI C12.20 Class 0.2
  • การวัดครบครัน: วัดแรงดัน, กระแส, พลังงาน, ความถี่, เพาเวอร์แฟกเตอร์ และฮาร์มอนิกส์ถึงลำดับที่ 31 ได้แบบเรียลไทม์
  • การวิเคราะห์ขั้นสูง: ฟังก์ชัน THD, TDD, K-Factor, Crest Factor, ความไม่สมดุล, มุมเฟส, และค่าดีเลย์เพาเวอร์แฟกเตอร์
  • อินพุต/เอาต์พุตยืดหยุ่น: รองรับ I4 สำหรับกระแสเส้นศูนย์กลาง, อินพุตแอนะล็อก 0/4–20mA และ Ir สำหรับกระแสรั่ว
  • การสื่อสาร: รองรับ Ethernet 100BaseT และ RS-485 ด้วยโปรโตคอล Modbus RTU/TCP, BACnet MS/TP, DNP 3.0, HTTP, SMTP, SNTP และ TFTP
  • เข้าถึงผ่านเว็บ: มี Web Server พร้อมรหัสผ่านเพื่อดูข้อมูลและตั้งค่าผ่านเว็บเบราว์เซอร์
  • การบันทึกข้อมูล: บันทึกพลังงาน, ค่าสูงสุด/ต่ำสุด, เหตุการณ์พร้อม Timestamp และเครื่องบันทึกข้อมูล
  • ใช้งานง่าย: หน้าจอใช้งานง่าย พร้อมไฟแสดงสถานะพัลส์พลังงานและกิจกรรมการสื่อสาร

การใช้งานทั่วไป:

  • การวัดพลังงานในสถานีย่อยของอุตสาหกรรม พาณิชยกรรม และสาธารณูปโภค
  • ระบบอัตโนมัติในอาคาร โรงงาน และกระบวนการผลิต
  • การแบ่งการใช้ไฟฟ้าย่อยและการจัดสรรต้นทุน
  • การบริหารจัดการพลังงานและการตรวจสอบคุณภาพไฟฟ้า

PMC 53A-E

PMC 53A-E

PMC-53A-E ialah meter pelbagai fungsi Ethernet bersaiz DIN96 (96x96x88mm) yang direka untuk pemantauan tepat parameter kuasa dan tenaga tiga fasa. Ia mematuhi piawaian IEC 62053-22 Kelas 0.5S dan ANSI C12.20 Kelas 0.2, menjadikannya pengganti yang boleh dipercayai bagi instrumen analog.

Ciri-ciri utama:

  • Ketepatan tinggi: Pematuhan kepada IEC 62053-22 Kelas 0.5S dan ANSI C12.20 Kelas 0.2
  • Pengukuran menyeluruh: Pemantauan masa nyata untuk voltan, arus, kuasa, tenaga, frekuensi, faktor kuasa dan harmonik sehingga peringkat ke-31
  • Analisis lanjutan: Menyokong THD, TDD, K-Factor, Crest Factor, ketidakseimbangan, sudut fasa, dan faktor kuasa nyahselarasan
  • Pilihan I/O fleksibel: Menyokong input I4 untuk arus neutral, input analog 0/4–20mA, dan input Ir untuk arus bocor
  • Komunikasi: Dilengkapi port Ethernet 100BaseT dan RS-485 dengan sokongan pelbagai protokol seperti Modbus RTU/TCP, BACnet MS/TP, DNP 3.0, HTTP, SMTP, SNTP, dan TFTP
  • Akses berasaskan web: Pelayan web terbina dalam dengan perlindungan kata laluan untuk paparan data masa nyata dan konfigurasi melalui pelayar
  • Log data: Menyediakan log tenaga, log maksimum/minimum, log kejadian dengan cap masa dan perakam data
  • Mudah digunakan: Antara muka mesra pengguna dengan penunjuk LED untuk denyutan tenaga dan komunikasi

Aplikasi Biasa:

  • Pemeteran pencawang untuk industri, komersial dan utiliti
  • Automasi bangunan, kilang, dan proses
  • Sub-metering dan pengagihan kos
  • Pengurusan tenaga dan pemantauan kualiti kuasa

PMC 53A-E

PMC-53A-E là đồng hồ điện đa chức năng dùng Ethernet, kích thước DIN96 (96x96x88mm), được thiết kế để giám sát chính xác các thông số điện năng ba pha. Thiết bị đạt chuẩn IEC 62053-22 Class 0.5S và ANSI C12.20 Class 0.2, là lựa chọn thay thế đáng tin cậy cho thiết bị đo analog.

Tính năng chính:

  • Độ chính xác cao: Tuân thủ các tiêu chuẩn IEC 62053-22 Class 0.5S và ANSI C12.20 Class 0.2
  • Đo lường toàn diện: Giám sát thời gian thực điện áp, dòng điện, công suất, năng lượng, tần số, hệ số công suất và hài đến bậc 31
  • Phân tích nâng cao: Bao gồm THD, TDD, hệ số K, hệ số đỉnh, mất cân bằng, góc pha và hệ số công suất dịch chuyển
  • I/O linh hoạt: Hỗ trợ đầu vào I4 để đo dòng trung tính, đầu vào analog 0/4–20mA cho cảm biến ngoài và đầu vào Ir để đo dòng rò
  • Giao tiếp: Có cổng Ethernet 100BaseT và RS-485 hỗ trợ nhiều giao thức như Modbus RTU/TCP, BACnet MS/TP, DNP 3.0, HTTP, SMTP, SNTP và TFTP
  • Truy cập qua web: Máy chủ web tích hợp có mật khẩu, cho phép xem dữ liệu và cấu hình từ xa qua trình duyệt
  • Ghi dữ liệu: Ghi lại năng lượng, giá trị cực đại/cực tiểu, sự kiện kèm thời gian và dữ liệu đầy đủ để phân tích
  • Dễ sử dụng: Giao diện thân thiện với đèn LED hiển thị trạng thái xung năng lượng và hoạt động truyền thông

Ứng dụng điển hình:

  • Đo đếm tại các trạm biến áp công nghiệp, thương mại và tiện ích
  • Tự động hóa tòa nhà, nhà máy và quy trình sản xuất
  • Đo đếm phụ và phân bổ chi phí
  • Quản lý năng lượng và giám sát chất lượng điện năng
