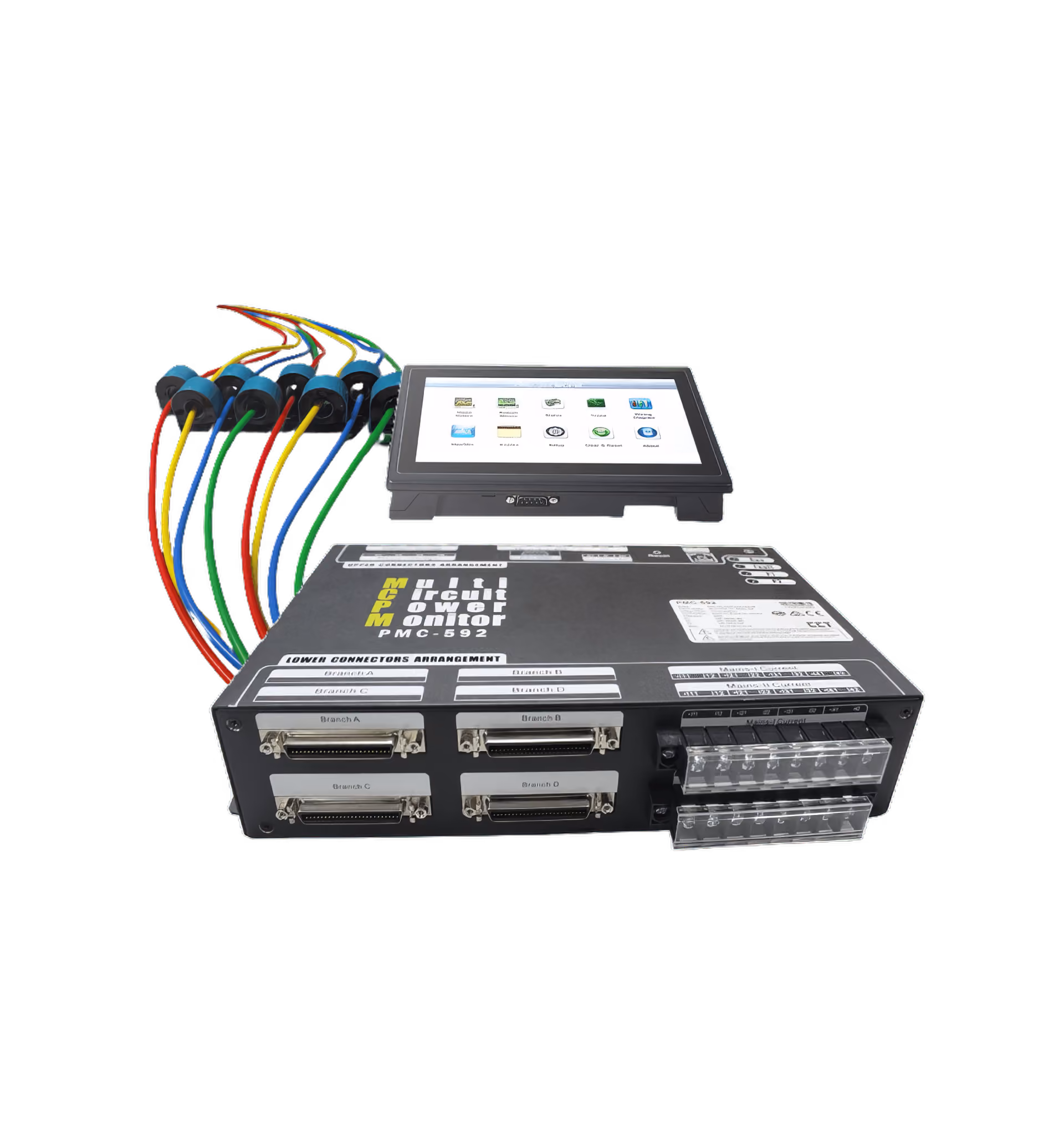

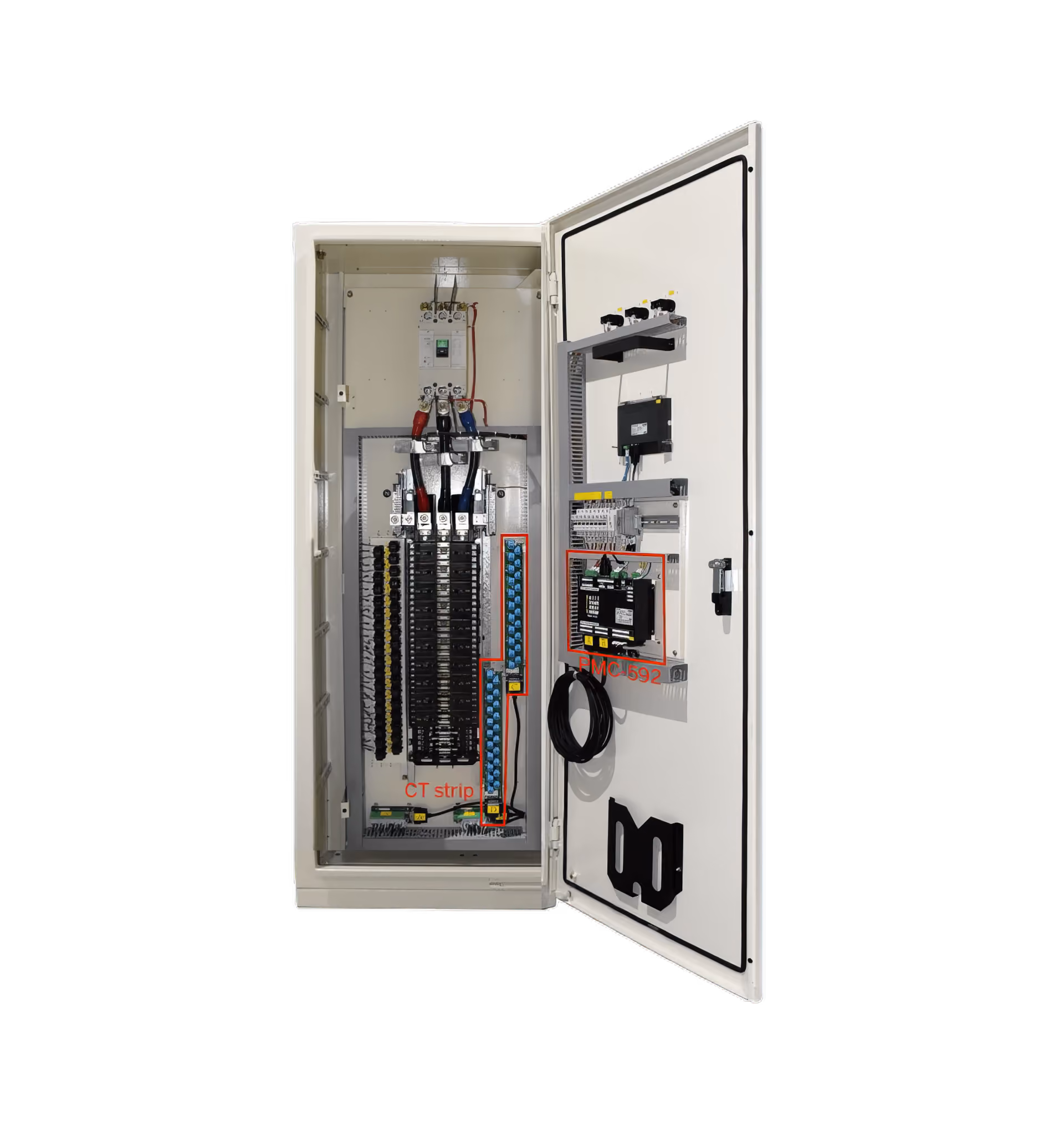

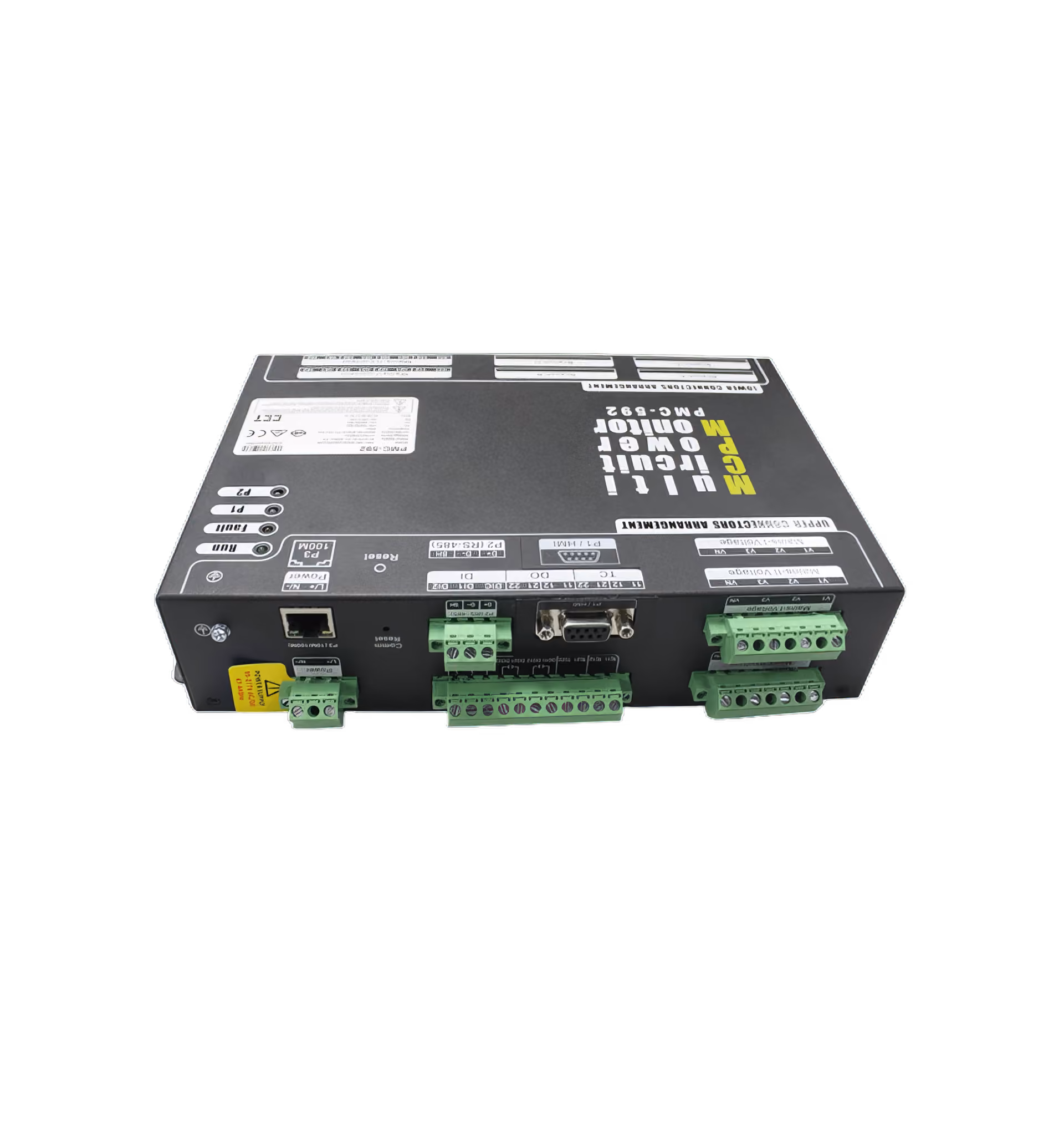

The PMC-592 is a high-density, multi-circuit power monitoring solution designed for applications such as Power Distribution Units (PDUs), Low Voltage Distribution Boards (LVDBs), and Load Centers. Housed in a compact metal enclosure, it supports two mains inputs and up to 84 branch circuit inputs, making it ideal for high-density metering requirements.​

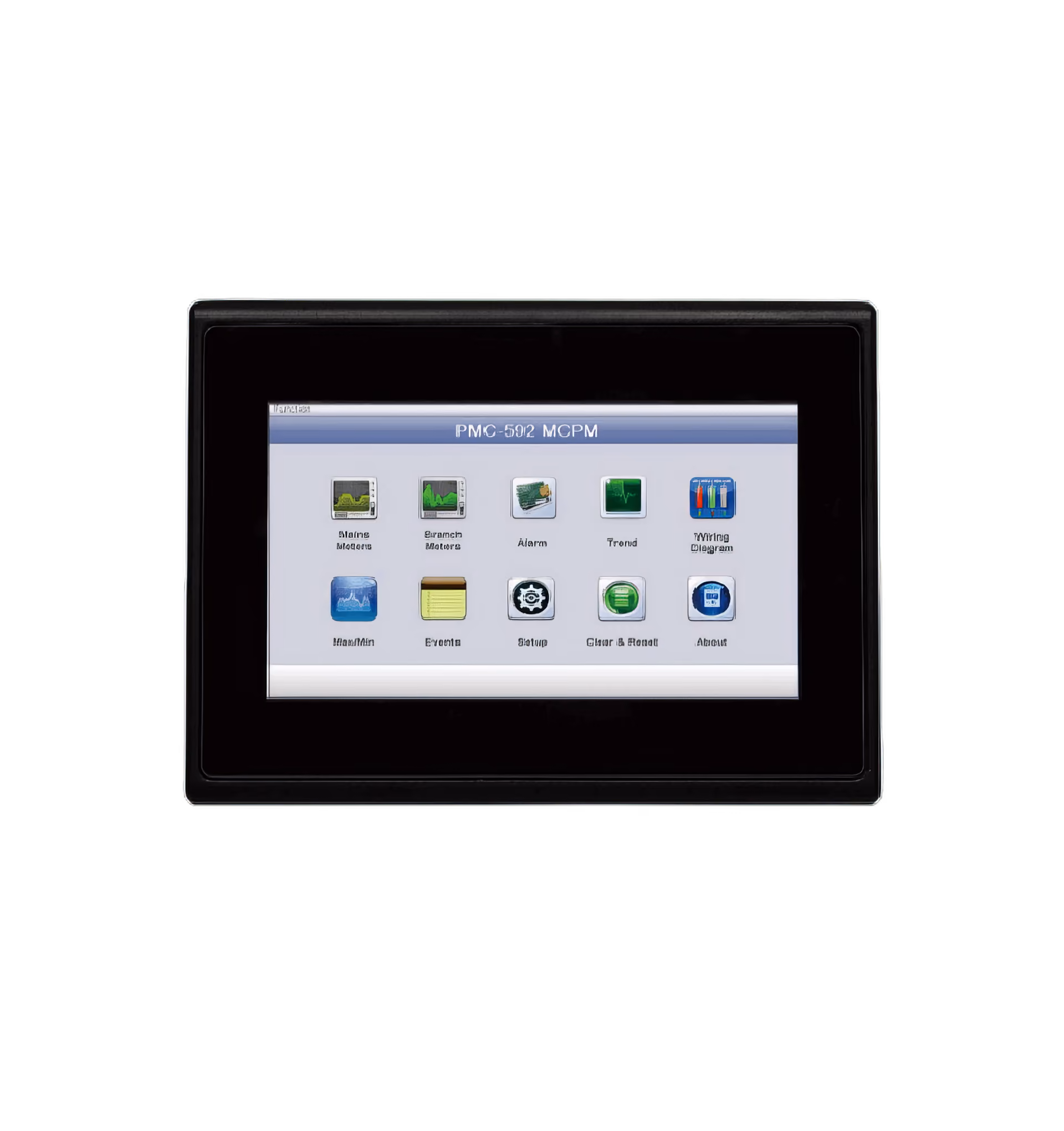

Key features include multifunctional and high-accuracy measurements, two digital inputs for status monitoring, two digital outputs for control or alarming, and two RTD inputs for temperature measurements. An optional 7” touch-screen HMI enhances user interaction and system management.​

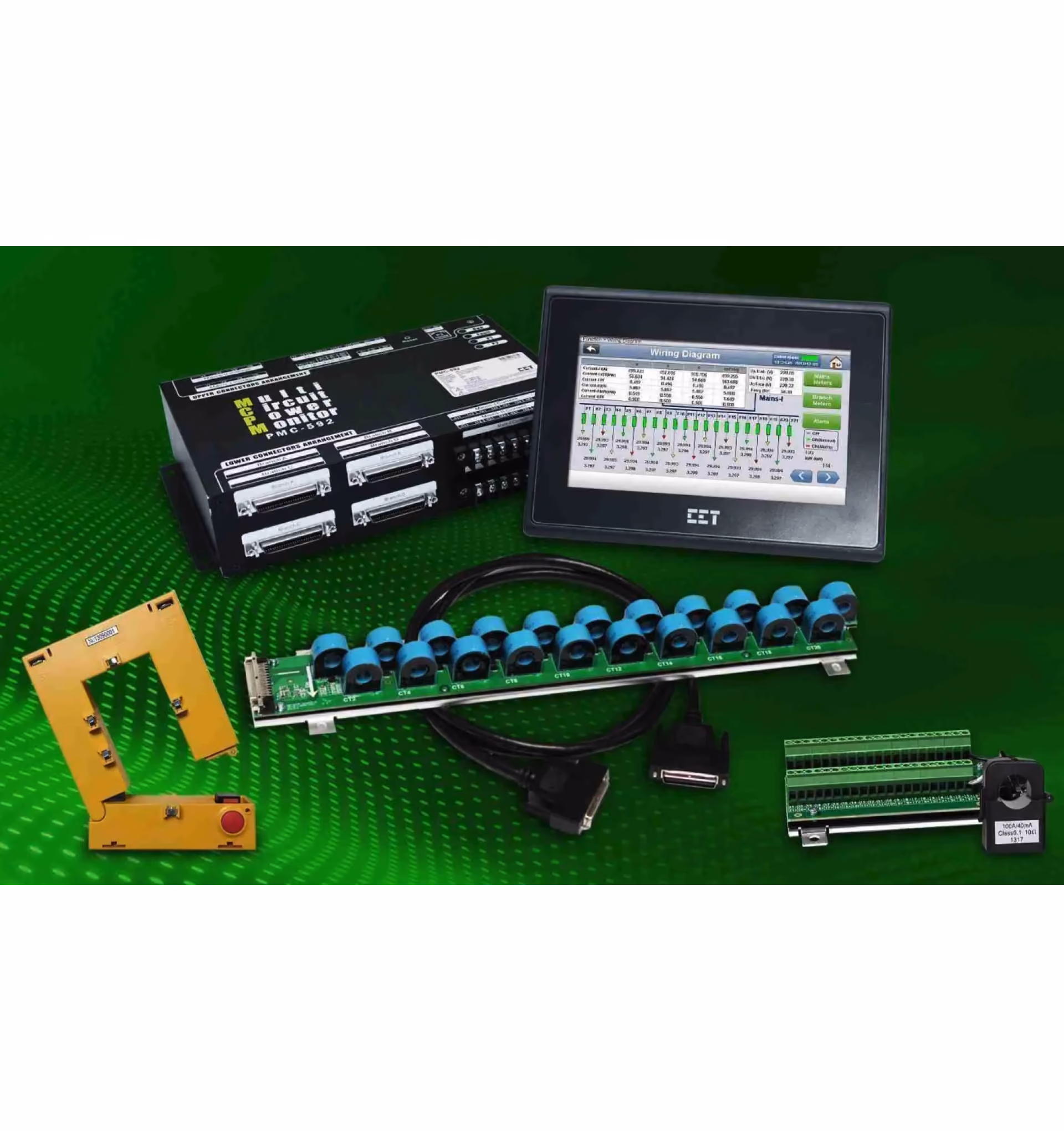

The PMC-592 offers optional support for both Solid-Core and Split-Core Current Transformers (CTs), enabling branch current monitoring up to 1600A. Its Sequence of Events (SOE) log records all setup changes, alarms, and DI/DO operations with 1ms resolution. Standard communication features include Ethernet and dual RS-485 ports supporting protocols such as Modbus RTU/TCP, HTTP, SMTP, and SNMP, facilitating seamless integration into centralized monitoring and control systems.

Multi-Circuit Power Monitor

• IEC 62053-22 Class 0.5S for Mains, IEC62053-21 Class 1 for Branches

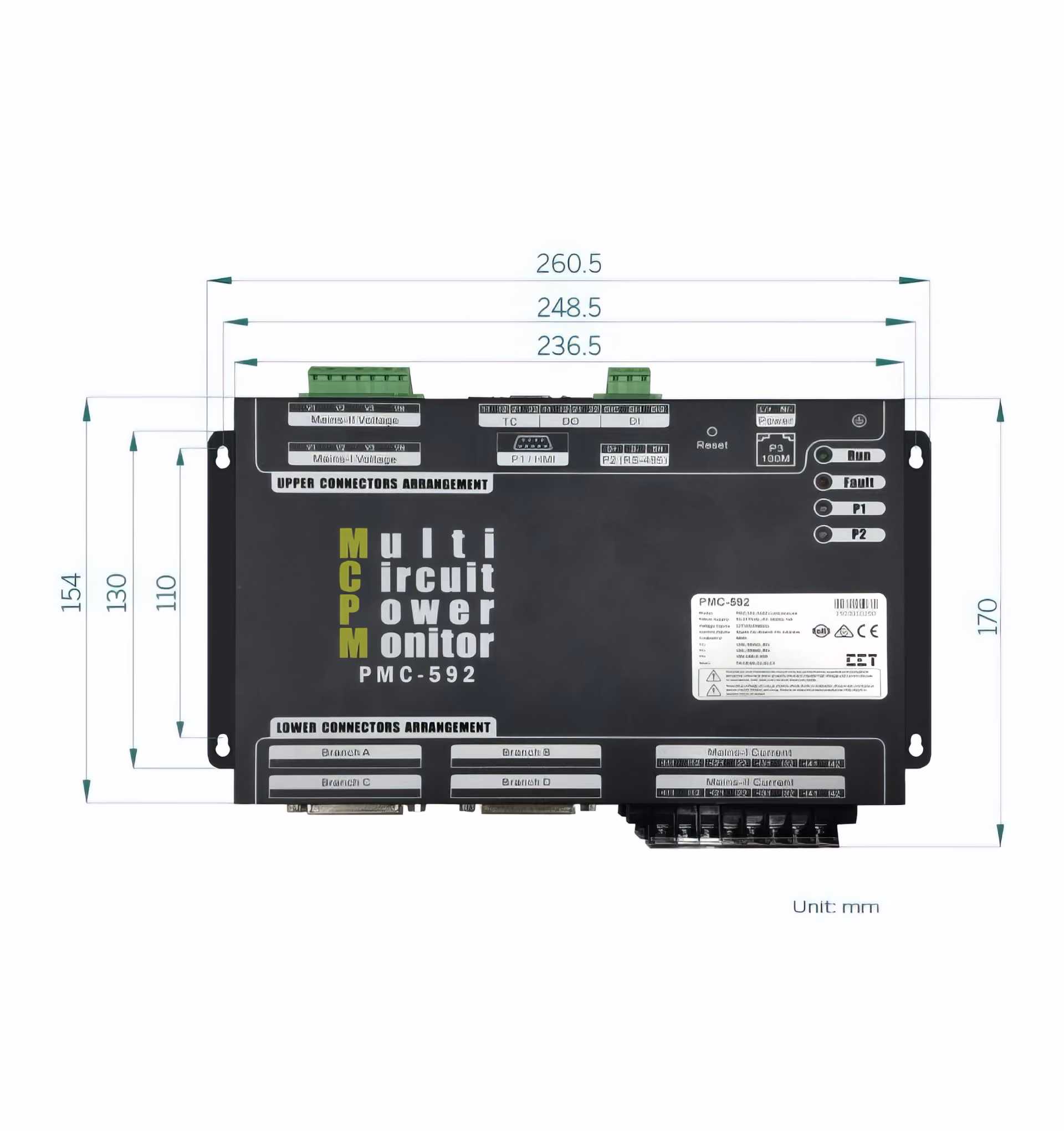

• 260.5x154x55.5mm
• LED Indicators, Optional Touch Screen HMI
• 2 Mains Inputs each with 3xV & 4xI, 84 Branch Circuits with CT-Strip Accessories
• Harmonics, Demands, Waveform Log, Dip/Swell Log and Event Log
• 1GB On-board Memory
• Modbus RTU/TCP, SNMP, HTTP, SMTP, SNTP
• 1xEthernet, 2xRS-485
• 2xDI, 2xDO, 1xRTD
