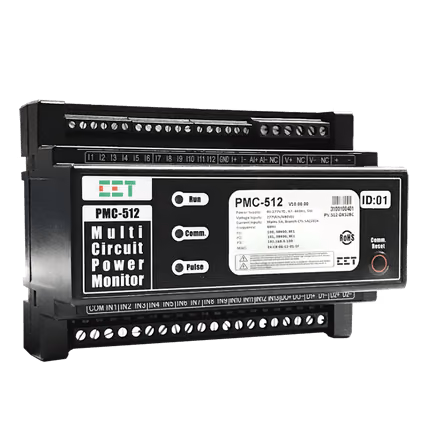

PMC-512-D DC Multi-Circuit Power Monitor is CET’s latest offer for application in telecom base station, renewable energy, commercial building and industrial automation, which require Direct Current (DC) multi-circuit monitoring. Housed in a compact metal enclosure, the PMC-512-D is perfectly suited for applications that have high density metering requirements. The PMC-512-D features quality construction with multifunction and high-accuracy measurements, one mains input, up to 12 branch circuit inputs and an optional color touch-screen HMI. The standard PMC-512-D comes with 13 digital inputs for status monitoring, one relay output for control or alarming as well as one analog input for temperature measurement or other applications. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1 ms resolution. With dual RS-485 as a standard feature supporting Modbus RTU, the PMC-512-D can easily be deployed in a stand-alone system with its Touch Screen HMI. Another alternative is to use it simultaneously with a centralized monitoring and control system, such as PecStar® iEMS Integrated Energy Management System, for a DC power distribution network.
- Data Center DC Power Monitoring
- Photovoltaic DC Distribution Boards
- Telecom Base Station DC PDUs
- Other DC Power Distribution Units
