Milesgo I7-1031

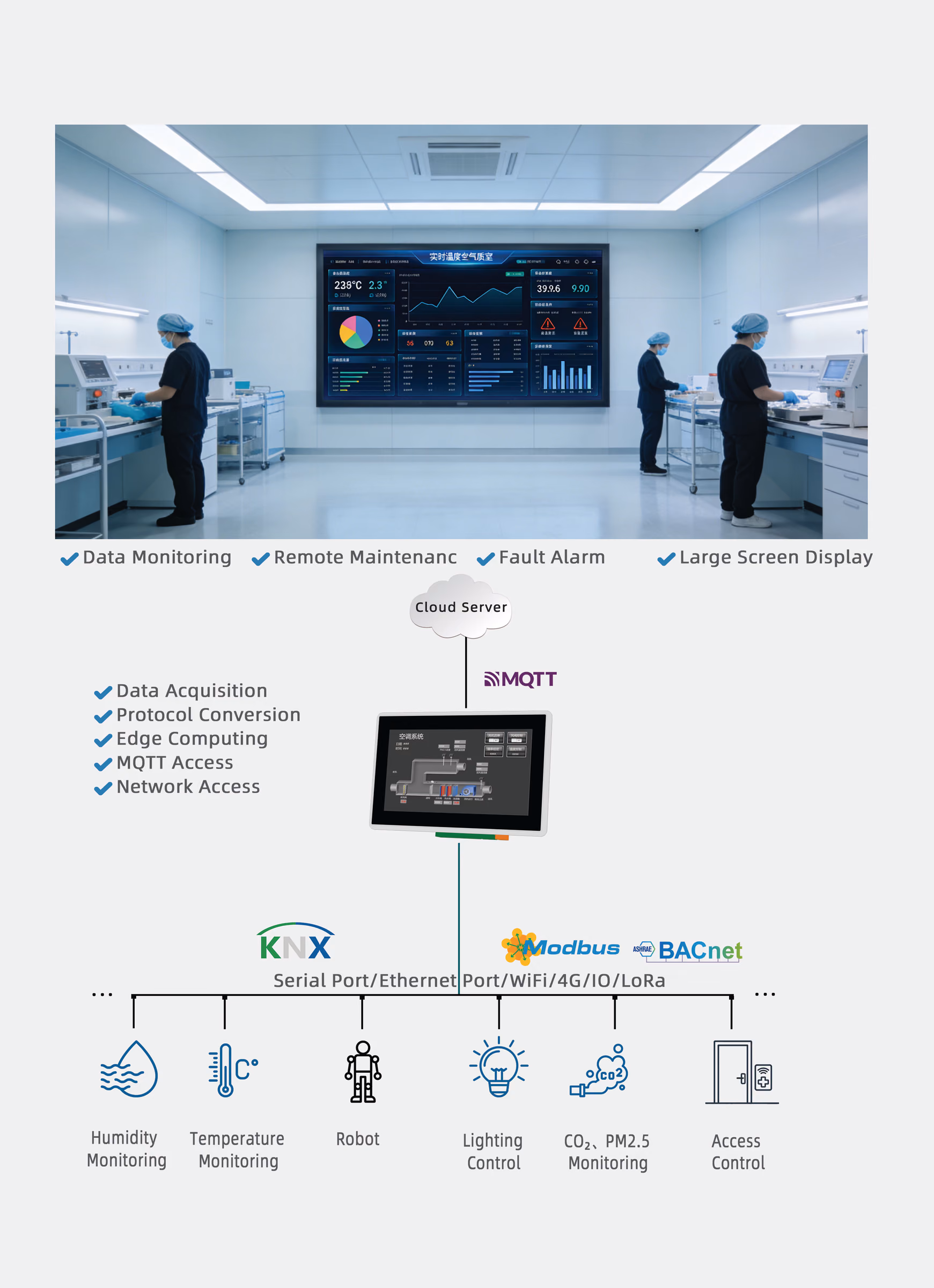

The Milesgo I7-1031 is a new-generation WEB HMI built on the HTML5 specification, combining a 7-inch capacitive touch panel with full protocol gateway functionality. It performs on-site data monitoring and switches directly to the configuration screen for real-time supervision. Because the configuration environment is entirely web-based, a project created by the user can be downloaded to the panel and then viewed through a browser on the touch screen itself, a phone, an iPad or a PC, with an open data interface for third-party system integration.

Key Features:

• Protocol conversion gateway: Converts connected equipment to standard BACnet servers and Modbus servers, with a library of 400+ supported device protocols and up to 6 communication protocols running simultaneously.
• Browser-based access: No client software required — view and control from IE9 and above, Safari, Google Chrome, Firefox or Opera on Windows 7 through Windows Server 2008.
• Dynamic register capacity: Registers are allocated dynamically, each supporting up to 2,048 points. BACnet AI, AO, AV, BI, BO, BV, MI, MO and MV each provide 2,048 registers; Modbus provides 2,048 coil, input status, holding and input registers.
• Alarming and automation: WeChat alarm notification, timers for equipment start/stop and parameter setting, plus JS scripting and a PLC editor for logic control.
• Access control: User group management with per-permission access to configuration screens.
• Flexible triggering: Multiple forms of scheduling and event triggering, with custom functions for extending applications.
• Rugged 7-inch panel: 1024 x 600 TFT capacitive display, quad-core 1.2GHz CPU, 1GB DDR3, 8GB flash, Linux, drawing 8W or less.
• Industrial connectivity: 1 Ethernet port (100M/10M adaptive industrial NIC with AUTO MDI/MDIX), 3 RS485 serial ports and 1 RS232 serial port.
• Built for the field: Aluminium alloy front shell and metal back plate, IP65 front panel and IP20 back shell, operating -10 to +60°C and 10-90% humidity non-condensing.

Mechanical: 190 x 124 x 34mm overall with a 180 x 114mm panel cut-out, weighing 0.65kg. Powered from AC/DC 12V-24V.

Protocol library highlights: BACnet IP and MS/TP, LonWorks, the full Modbus family (RTU, ASCII, TCP, UDP and server modes), OPC DA / XML-DA / UA, SNMP and MQTT, plus dedicated drivers for lifts (Otis, Mitsubishi, Kone, Thyssenkrupp, Hitachi), UPS systems (Emerson, Schneider APC, Santak, Delta, Legrand), fire alarm panels (Siemens, Bosch, Notifier, Tyco), lighting control (KNX, DALI, Lutron, Clipsal, Dynalite), energy and water meters, weighing systems and environmental monitoring.

Typical Applications:

• Building automation: integrating PLC, DDC, UPS, central air conditioning, lifts, fire alarm and lighting control systems onto one panel.
• Protocol gateway duty: exposing legacy or uncommon field devices to a BMS as standard BACnet or Modbus points.
• Local plant room HMI: on-site monitoring and control of AHUs, chillers and pumps with a graphical configuration screen.
• Remote supervision: viewing and operating plant from a phone, iPad or PC over the LAN without dedicated client software.
• Metering integration: collecting electricity, water, heat and flow meters for energy management reporting.
