ESG 5107D

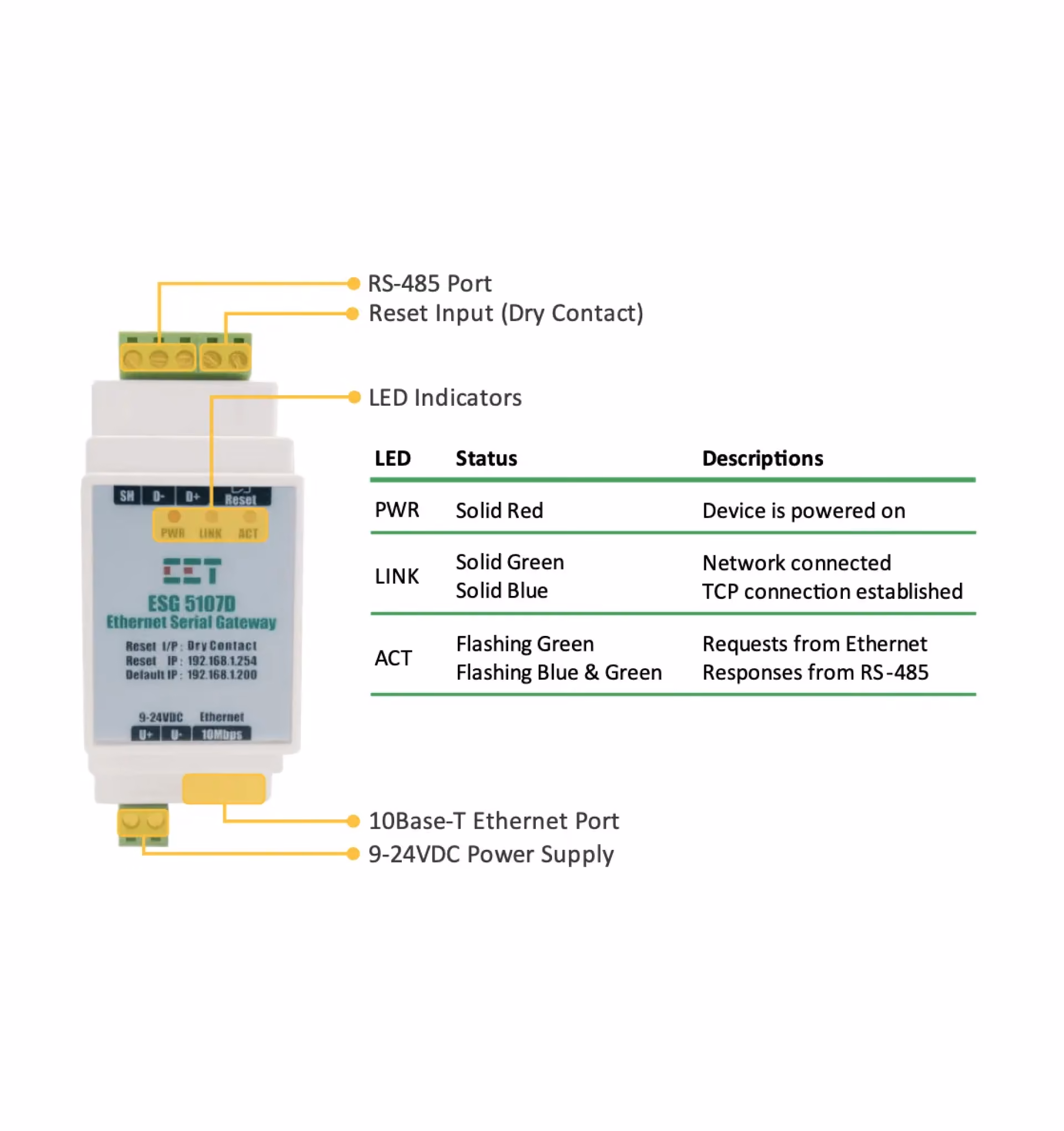

The ESG 5107D is an Ethernet-to-Serial gateway featuring a 10BaseT Ethernet port and a high-speed RS-485 port. It is ideal for connecting IP-based workstations to RS-485 serial devices.

  • Compact size of 36.5 (W) x 58.7 (D) x 87.5 (H)
  • DIN-rail 35mm installation with no tools required
  • 3x LED indicators for a quick overview of device status
  • 9-24VDC power supply
  • “Dry contact” for reset input
  • Supports up to 115kbps for its RS-485 port
  • Multi-Master support (up to 10 Masters)
  • Automatic or manual IP addressing
  • Simple configuration via Web Interface

ESG 5107D

ESG 5107D

ESG 5107D 是一款以太网转串口网关,配备 10BaseT 以太网端口和高速 RS-485 接口,非常适合将基于 IP 的工作站连接到 RS-485 串口设备。

  • Compact size of 36.5 (W) x 58.7 (D) x 87.5 (H)
  • DIN-rail 35mm installation with no tools required
  • 3x LED indicators for a quick overview of device status
  • 9-24VDC power supply
  • “Dry contact” for reset input
  • Supports up to 115kbps for its RS-485 port
  • Multi-Master support (up to 11 Masters)
  • Automatic or manual IP addressing
  • Simple configuration via Web Interface

ESG 5107D

ESG 5107D เป็นเกตเวย์ Ethernet-to-Serial ที่มีพอร์ต Ethernet 10BaseT และพอร์ต RS-485 ความเร็วสูง เหมาะสำหรับเชื่อมต่อเวิร์กสเตชันบนเครือข่าย IP เข้ากับอุปกรณ์อนุกรม RS-485

  • Compact size of 36.5 (W) x 58.7 (D) x 87.5 (H)
  • DIN-rail 35mm installation with no tools required
  • 3x LED indicators for a quick overview of device status
  • 9-24VDC power supply
  • “Dry contact” for reset input
  • Supports up to 115kbps for its RS-485 port
  • Multi-Master support (up to 12 Masters)
  • Automatic or manual IP addressing
  • Simple configuration via Web Interface

ESG 5107D

ESG 5107D

ESG 5107D ialah gerbang Ethernet-ke-Siri yang dilengkapi dengan port Ethernet 10BaseT dan port RS-485 berkelajuan tinggi. Sesuai untuk menyambungkan workstation berasaskan IP ke peranti bersiri RS-485.

  • Compact size of 36.5 (W) x 58.7 (D) x 87.5 (H)
  • DIN-rail 35mm installation with no tools required
  • 3x LED indicators for a quick overview of device status
  • 9-24VDC power supply
  • “Dry contact” for reset input
  • Supports up to 115kbps for its RS-485 port
  • Multi-Master support (up to 13 Masters)
  • Automatic or manual IP addressing
  • Simple configuration via Web Interface

ESG 5107D

ESG 5107D là thiết bị gateway chuyển đổi Ethernet sang Serial, tích hợp cổng Ethernet 10BaseT và cổng RS-485 tốc độ cao. Lý tưởng để kết nối các máy trạm sử dụng mạng IP với thiết bị nối tiếp RS-485.

  • Compact size of 36.5 (W) x 58.7 (D) x 87.5 (H)
  • DIN-rail 35mm installation with no tools required
  • 3x LED indicators for a quick overview of device status
  • 9-24VDC power supply
  • “Dry contact” for reset input
  • Supports up to 115kbps for its RS-485 port
  • Multi-Master support (up to 14 Masters)
  • Automatic or manual IP addressing
  • Simple configuration via Web Interface
