PMC-1302-3

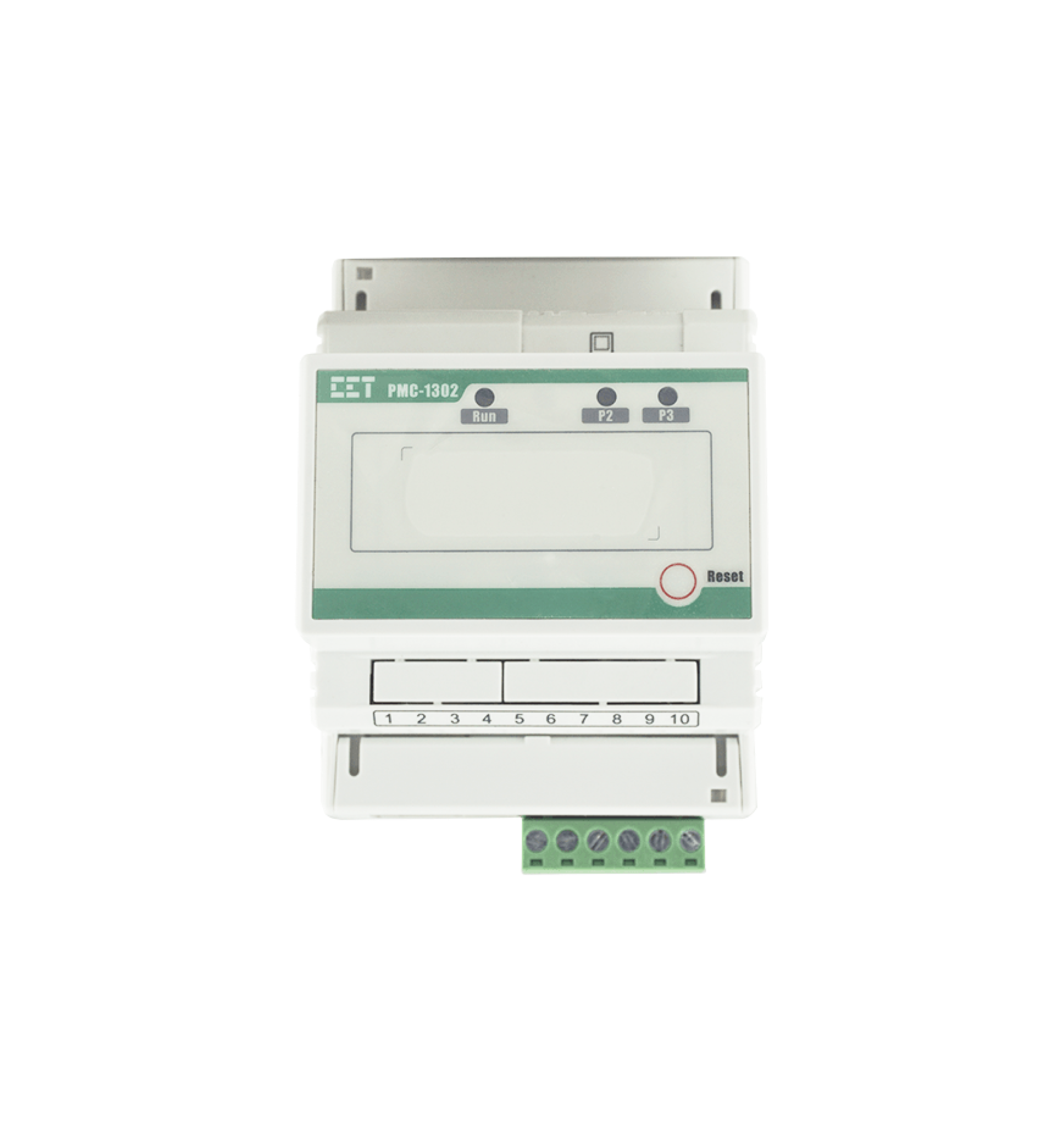

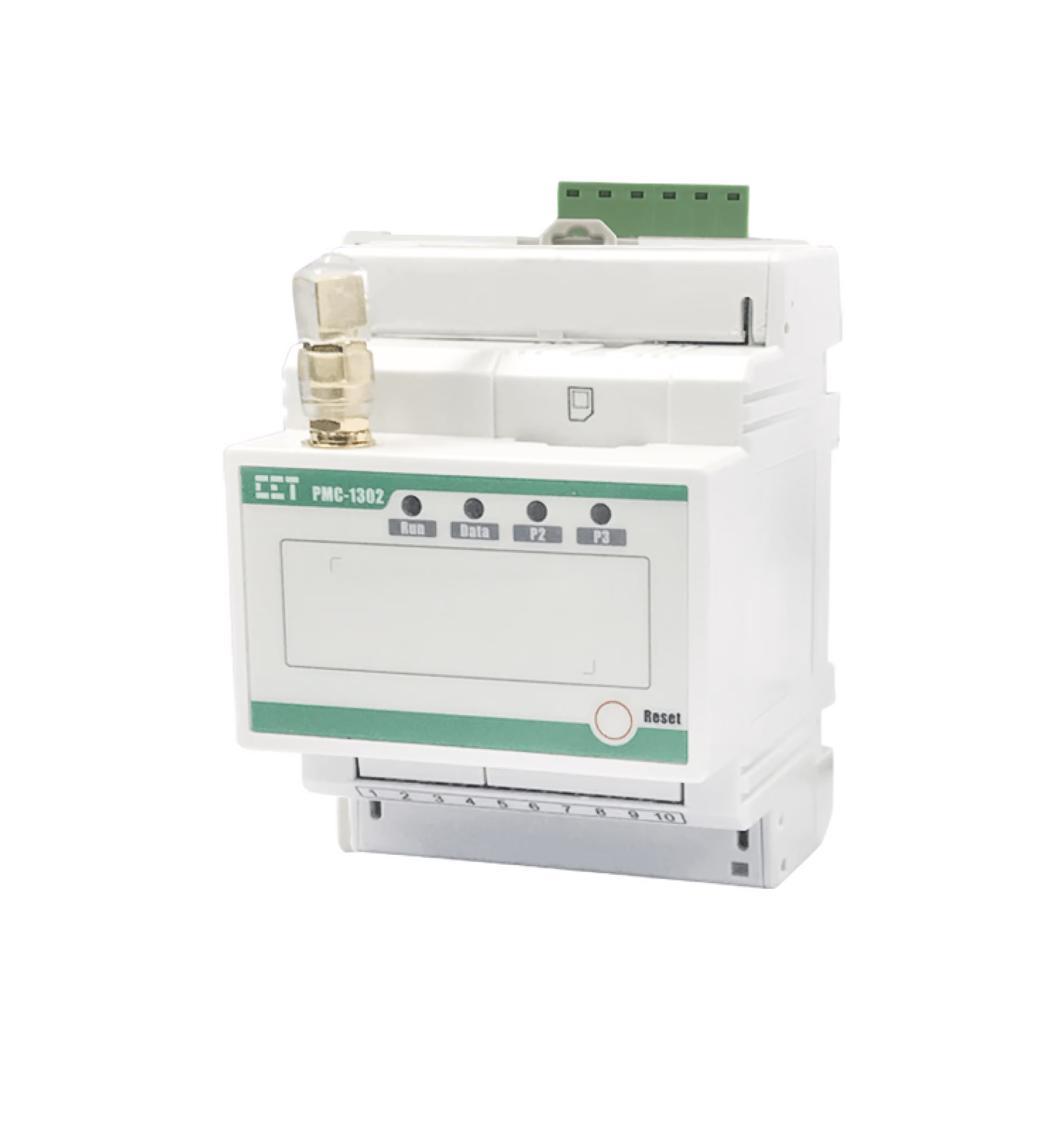

The PMC-1302-3 ESG is an industrial-grade Ethernet Serial/LoRa Gateway designed to connect RS-485 and optionally LoRa-enabled devices to an IP-based Ethernet LAN, facilitating seamless integration with SCADA and automation systems. Engineered for industrial automation, it delivers exceptional performance and high reliability, even in harsh environments.​

Key Features:

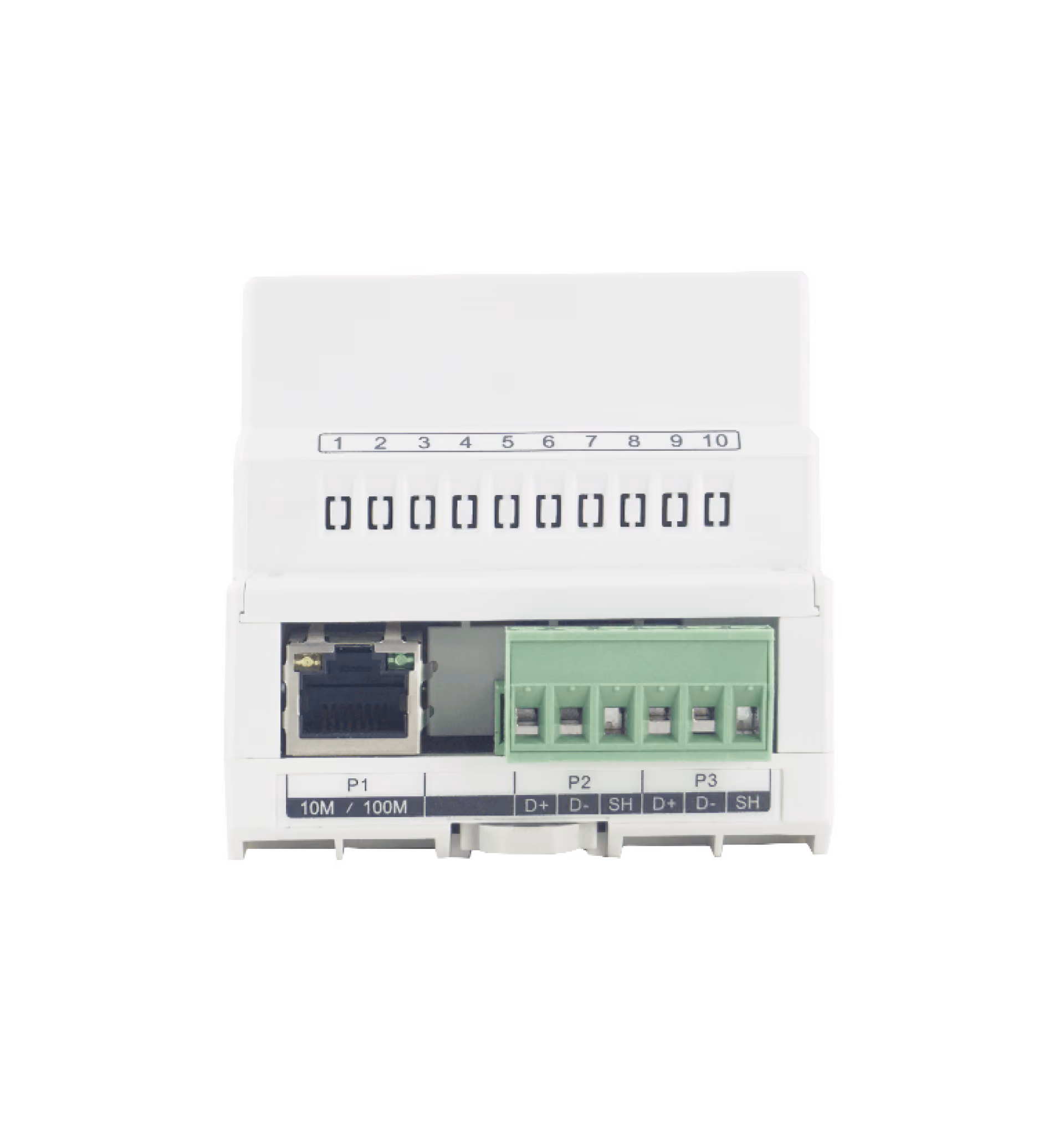

  • Versatile Connectivity: Equipped with one 10/100BaseT Ethernet port, two RS-485 ports, and an optional LoRa port supporting configurable ISM bands (EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925).​
  • Protocol Support: Supports TCP, UDP, and HTTP protocols, facilitating seamless integration with various network configurations.​
  • Gateway Functionality: Offers transparent gateway capabilities between Ethernet and RS-485/LoRa interfaces, supporting multiple masters for both Modbus and transparent communication.​
  • Robust Design: Features 1.5kV isolation protection for the Ethernet port, 3kV isolation for RS-485 ports, and ESD protection of 8kV (contactless) and 6kV (contact), ensuring reliable operation in harsh industrial environments.​
  • User-Friendly Interface: Includes a built-in web interface for straightforward configuration and monitoring.​

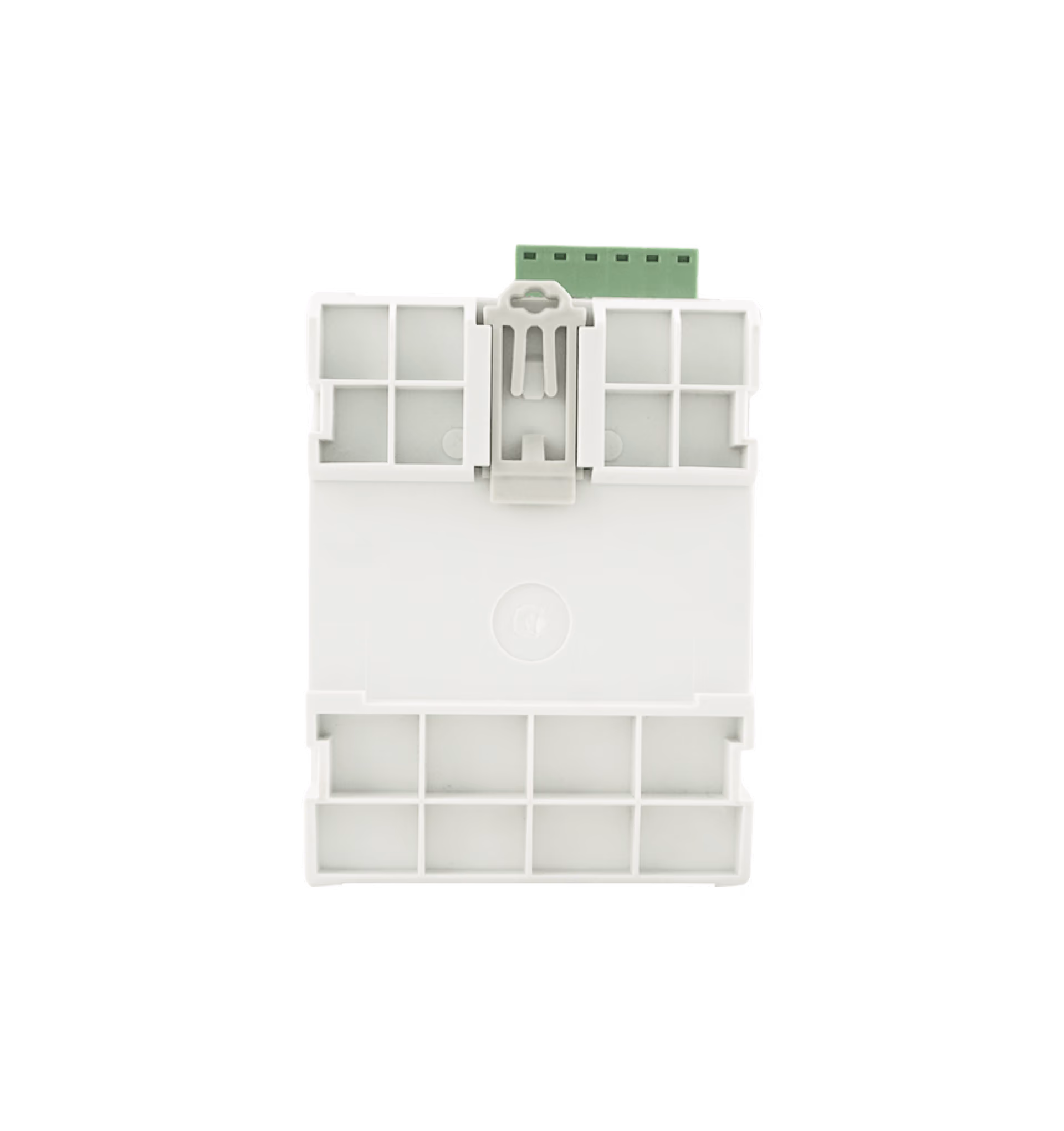

  • Compact Form Factor: DIN rail mountable with dimensions of 72x65x95mm, suitable for installations where space is limited.

  • Industrial automation systems​
  • Building automation systems
  • Energy management systems (EMS)​
  • SCADA systems​
  • Remote monitoring and control applications

PMC-1302-3

PMC-1302-3

PMC-1302-3 ESG 是一款工业级以太网串口/LoRa 网关,旨在将 RS-485 设备和可选的 LoRa 设备连接至基于 IP 的以太网 LAN,实现与 SCADA 与自动化系统的无缝集成。该设备专为工业自动化设计,在严苛环境中仍能提供卓越性能与高度可靠性。

主要特点:

  • 多样化连接: 配备 1 个 10/100BaseT 以太网口、2 个 RS-485 接口及可选的 LoRa 接口,支持多种 ISM 频段配置(EU863-870、RU864-870、IN865-867、US902-928、AU915-928、AS920-923、AS923-925)
  • 协议支持: 支持 TCP、UDP 和 HTTP 协议,适应各种网络配置
  • 网关功能: 实现以太网与 RS-485/LoRa 接口之间的透传通信,支持多个主站和透明传输
  • 坚固设计: 以太网口具备 1.5kV 隔离保护,RS-485 接口具备 3kV 隔离及 8kV(非接触)/6kV(接触)ESD 保护,适用于严苛工业环境
  • 用户友好界面: 内置网页界面,便于配置和监控
  • 紧凑结构: 尺寸为 72×65×95mm,支持 DIN 导轨安装,适用于空间受限的安装环境
  • 工业自动化系统
  • 建筑自动化系统
  • 能源管理系统(EMS)
  • SCADA 系统
  • 远程监控与控制应用

PMC-1302-3

PMC-1302-3 ESG เป็นเกตเวย์ Serial/LoRa ระดับอุตสาหกรรม ที่ออกแบบมาเพื่อเชื่อมต่ออุปกรณ์ RS-485 และ LoRa (อุปกรณ์เสริม) เข้ากับระบบ LAN Ethernet บนพื้นฐาน IP เพื่อรองรับการทำงานร่วมกับระบบ SCADA และระบบอัตโนมัติ

คุณสมบัติเด่น:

  • การเชื่อมต่อที่หลากหลาย: มีพอร์ต Ethernet 10/100BaseT จำนวน 1 พอร์ต, RS-485 จำนวน 2 พอร์ต และพอร์ต LoRa (เลือกได้) ที่รองรับย่านความถี่ ISM หลายประเภท (EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925)
  • รองรับโปรโตคอล: สนับสนุน TCP, UDP และ HTTP
  • ฟังก์ชันเกตเวย์: รองรับการทำงานเป็นเกตเวย์แบบโปร่งใสระหว่าง Ethernet และ RS-485/LoRa รองรับ master หลายตัวสำหรับ Modbus และโปรโตคอลโปร่งใส
  • การออกแบบที่ทนทาน: มีการป้องกันการแยกวงจร Ethernet ที่ 1.5kV, RS-485 ที่ 3kV และการป้องกัน ESD 8kV (แบบไม่สัมผัส) และ 6kV (แบบสัมผัส)
  • การใช้งานง่าย: มีอินเทอร์เฟซแบบเว็บในตัวเพื่อการตั้งค่าและการตรวจสอบที่ง่ายดาย
  • ขนาดกะทัดรัด: ขนาด 72x65x95 มม. ติดตั้งบนราง DIN ได้ เหมาะสำหรับพื้นที่จำกัด
  • ระบบอัตโนมัติในอุตสาหกรรม
  • ระบบอัตโนมัติในอาคาร
  • ระบบจัดการพลังงาน (EMS)
  • ระบบ SCADA
  • การตรวจสอบและควบคุมระยะไกล

PMC-1302-3

PMC-1302-3

PMC-1302-3 ESG ialah Gerbang Serial/LoRa Ethernet gred industri yang direka untuk menyambungkan peranti RS-485 dan LoRa (pilihan) ke LAN Ethernet berasaskan IP, membolehkan integrasi lancar dengan sistem SCADA dan automasi.

Ciri-ciri utama:

  • Sambungan pelbagai guna: Dilengkapi dengan satu port Ethernet 10/100BaseT, dua port RS-485 dan satu port LoRa pilihan yang menyokong jalur ISM boleh dikonfigurasi (EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925)
  • Sokongan Protokol: Menyokong protokol TCP, UDP dan HTTP untuk integrasi rangkaian yang fleksibel
  • Fungsi Gateway: Menyediakan keupayaan gateway telus antara Ethernet dan RS-485/LoRa, menyokong berbilang master untuk Modbus dan komunikasi telus
  • Reka bentuk tahan lasak: Perlindungan pengasingan 1.5kV untuk Ethernet, 3kV untuk RS-485, dan perlindungan ESD 8kV (tanpa sentuhan) / 6kV (dengan sentuhan)
  • Antara muka mesra pengguna: Dilengkapi dengan antaramuka web terbina dalam untuk konfigurasi dan pemantauan yang mudah
  • Reka bentuk padat: Saiz 72×65×95mm, boleh dipasang pada rel DIN, sesuai untuk pemasangan dalam ruang terhad
  • Sistem automasi industri
  • Sistem automasi bangunan
  • Sistem pengurusan tenaga (EMS)
  • Sistem SCADA
  • Aplikasi pemantauan dan kawalan jauh

PMC-1302-3

PMC-1302-3 ESG là bộ gateway Ethernet Serial/LoRa cấp công nghiệp, được thiết kế để kết nối thiết bị RS-485 và tùy chọn LoRa với mạng LAN Ethernet dựa trên IP, hỗ trợ tích hợp liền mạch với hệ thống SCADA và tự động hóa.

Tính năng chính:

  • Kết nối linh hoạt: Trang bị 1 cổng Ethernet 10/100BaseT, 2 cổng RS-485 và 1 cổng LoRa tùy chọn hỗ trợ các băng tần ISM cấu hình được (EU863-870, RU864-870, IN865-867, US902-928, AU915-928, AS920-923, AS923-925)
  • Hỗ trợ giao thức: Hỗ trợ TCP, UDP và HTTP để tích hợp với nhiều cấu hình mạng
  • Chức năng Gateway: Cung cấp chức năng gateway trong suốt giữa Ethernet và RS-485/LoRa, hỗ trợ nhiều master cho cả giao tiếp Modbus và truyền dữ liệu trong suốt
  • Thiết kế bền chắc: Cách ly 1.5kV cho cổng Ethernet, 3kV cho RS-485, bảo vệ ESD 8kV (không tiếp xúc) và 6kV (tiếp xúc), đảm bảo hoạt động ổn định trong môi trường khắc nghiệt
  • Giao diện dễ sử dụng: Giao diện web tích hợp sẵn giúp cấu hình và giám sát dễ dàng
  • Thiết kế nhỏ gọn: Kích thước 72×65×95mm, gắn DIN-rail, phù hợp với không gian lắp đặt hạn chế
  • Hệ thống tự động hóa công nghiệp
  • Hệ thống tự động hóa tòa nhà
  • Hệ thống quản lý năng lượng (EMS)
  • Hệ thống SCADA
  • Ứng dụng giám sát và điều khiển từ xa
